ARC-1203

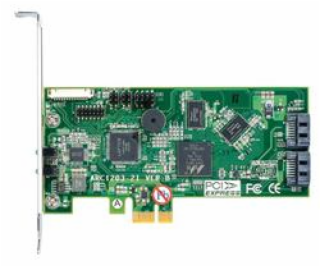

The Areca ARC-1203-2i SATA RAID controllers PCIe 2.0 x1 bus to SATA disk array controller. They can provide two SATA III ports on a single controller.
The SATA RAID adapter can provide a high performance and fault tolerance with data mirroring for maximum protection. The ARC-1203-2i is cost-effective 6 Gbps SATA RAID solution for desktop and workstations as well as entry-level servers.

Features and Benefits
•Supports up to 2 SATA III HDDs
•600 MB/s speed at each port
•True hardware RAID protection for all your valuable data
•Hot-swap and Hot-spare function for data availability
•Online capacity expansion, RAID level/stripe size migration
•Redundant flash image for adapter availability
•Optional Battery Backup Module (BBM)
•Web browser-based RAID manager via Archttp Proxy Server
•Broad operating support including Windows, Linux, Mac OS X, Solaris and FreeBSD


Technical Specifications
Model Areca ARC-1203-2i
Adapter Architecture
Host Bus Type PCIe 2.0 x1
Processor ARM 1066 MHz
Controller-Flash-Image redundant
Batterie Backup optional
Cache 512 MB DDR3-1066
HDDs 2 x SATA III (6 Gbit/s)
HDD Ports 2 x SATA
Operating Systems
Supported OS Windows 10/8/Server 2012 R2/7/2008/Vista/XP/2003
RedHat Linux
SuSE Linux
Free BSD
Solaris 10/11 x86/x86_64
Mac OS X 10.5.x or higher
RAID
RAID Level 0, 1, Single disk and JBOD
RAID Features Multiple RAID selection, instant availability and background initialization, greater than 2 TB per volume set (64-bit LBA support)
Online expansion Online array roaming, online RAID level/stripe size migration, online capacity expansion and RAID level migration simultaneously, online volume set growth
Environment Specification
Humidity 15 % ~ 8 0%, non-condensing
Operating Temperature +5 °C ~ 60 °C
Dimension
Physical Dimensions/mm (Width x Height) 134 x 64
Form Factor Low Profile

---
