Popis produktu

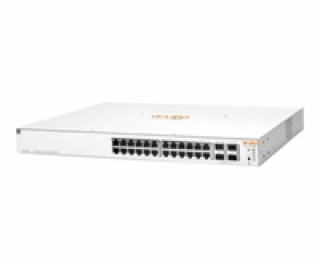

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683B)




I/O Ports and Slots


24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports




Physical Characteristics


Dimensions


17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm)(1U height)




Weight


7.69lb (3.49kg)




Processor and Memory


ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB




Packet Buffer


1.5 MB




Performance


100 Mb latency


< 4.7 uSec




1000 Mb latency


<2.4 uSec




10000 Mb latency


<1.3 uSec




Throughput (Mpps)


95.23 Mpps




Capacity


128 Gbps




Routing table size (# of static entries)


32




MAC address table size (# of entries)


16,000




Reliability MTBF (years)


76




Environment


Operating temperature


32°F to 104°F (0°C to 40°C)




Operating relative humidity


15% to 95% @ 104°F (40°C)




Non-operating temperature


-40°F to 158°F (-40°C to 70°C)




Non-operating relative humidity


15% to 95% @ 140°F (60°C)




Altitude


Up to 10,000ft (3.048 Km)




Acoustic 1


LWAd = 3.9 Bel
LpAm (Bystander) = 25 dB




Notes: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)




Electrical Characteristics


Frequency


50-60 Hz




AC voltage


100 - 127 / 200 - 240 VAC




Current


2.8 A/1.4 A




Maximum power rating


248.7W




Idle power


19.7W




PoE power


195 W Class 4 PoE




Power supply


Internal power supply




Safety


UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014




Emissions


VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A




Immunity


Generic


CISPR 24 / CISPR 35




EN


EN 55024:2010 / EN 55035:2017




ESD


IEC 61000-4-2




Radiated


IEC 61000-4-3




EFT/Burst


IEC 61000-4-4




Surge


IEC 61000-4-5




Conducted


IEC 61000-4-6




Power frequency magnetic field


IEC 61000-4-8




Voltage dips and interruptions


IEC 61000-4-11




Harmonics


IEC 61000-3-2, EN 61000-3-2




Flicker


IEC 61000-3-3, EN 61000-3-3




Device Management


Aruba Instant On Cloud; Web browser; SNMP Manager




Mounting


Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rackmounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided




Transceivers







Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)
Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
Aruba Instant On 10G SFP+ to SFP+ 1m DAC (R9D19A)
Aruba Instant On 10G SFP+ to SFP+ 3m DAC (R9D20A)

---
