Popis produktu

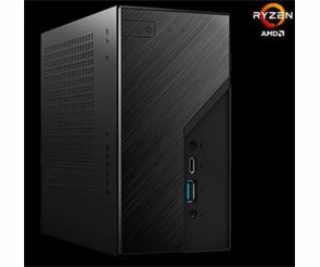

DeskMini X300 Barebone



CPU

- Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)


Cooler

- Supports AMD AM4 CPU Cooler (Max. Height ? 46mm)


Memory

- Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
- AMD Ryzen 4000 series – 3200MHz
- AMD Ryzen 3000/2000 series – 2933MHz


Chipset

- AMD X300


Graphics Output

- HDMI(4K @60Hz)
- DisplayPort, D-Sub


Audio

- 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)


Front USB

- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A


Rear USB

- 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,


Storage

- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
- 1 x Ultra M.2 (2280) Slot
- PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
- PCIe Gen3 x2 (Athlon 2xxGE series APU)


LAN

- Gigabit LAN (RealtekRTL8111H)


WLAN

- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module


Connectors

- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
- 1 x Audio Header (4-Pin)


Accessory

- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack


Dimension

- 155 x 155 x 80 mm (1.92L)


Remark

DeskMini X300 Series don't support S3 function.








The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

---
