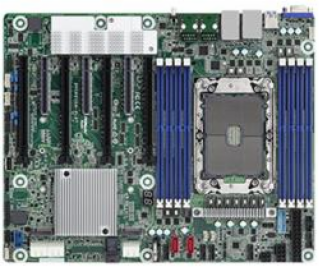

Specifications




 Physical Status


Form Factor
ATX


Dimensions
12" x 9.6"


 Processor System


CPU
Supports 3 rd  Gen Intel ®  Xeon ®  Scalable processors


Socket
Single Socket P+ (LGA 4189)


Chipset
Intel ®  C621A


 System Memory


Supported DIMM Quantity
8 DIMM slots (1DPC)


Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel ®  Optane™ Persistent Memory 200 series


Max. Capacity per DIMM
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB


DIMM Frequency
max. 3200MHz


Voltage
1.2V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT7: PCIe4.0 x16 *
SLOT5: PCIe4.0 x16 *
SLOT3: PCIe4.0 x16 *
SLOT1: PCIe4.0 x16

*  SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied


PCIe x 8
SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8


 Other PCIe Expansion Connectors


M.2 slot
1 M-key (PCIe3.0 x4), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor


 SATA/SAS Storage


PCH Built-in Storage
Intel ®  C621A (13 SATA 6Gb/s; RAID 0/1/5/10):
1 Mini-SAS HD, 6 SATA 7-pin, 2 SATA DOM, 1 M.2


 Ethernet


Additional GbE Controller
Intel ®  i210: 2 RJ45 (1GbE)


 Server Management


BMC Controller
ASPEED AST2500


IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


 Graphics


Controller
ASPEED AST2500


VRAM
DDR4 16MB


 Rear I/O


UID Button/LED
1


VGA Port
1 DB15


USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)


RJ45
2 RJ45 (1GbE)


Dedicate LAN
1 dedicated IPMI


 Internal Connector/Headers


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus


System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED


COM Header
1


Video output
1


Speaker Header
1


Buzzer
1


Fan Header
5 (6-pin)


Thermal Sensor Header
1


TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)


VROC header
1


SGPIO Header
1


SMBus header
1


PMB header
1


IPMB Header
1


Clear CMOS
1 (contact pads)


USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)


USB 2.0 Header
1 (9-pin, 2 USB2.0)


Type A USB 2.0 Port
1 (Type-A, 1 USB2.0)


NMI Header
1


Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power)


ME/SPS Recovery
1


NC-SI
1


 LED Indicators


Standby PWR LED 5vsb
1


80 Debug Port LED
1


Fan Fail LED
5


 System BIOS


BIOS Type
256Mb SPI Flash ROM


BIOS Features
AMI UEFI BIOS


 Hardware Monitor


Temperature
CPU, PCH, MB, Card side Temperature Sensing


Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control


Voltage
+12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3.3VSB, 5VSB


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
