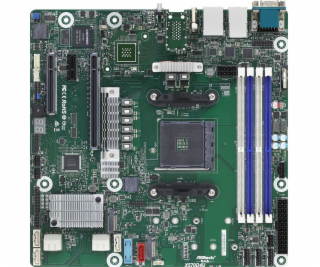

Specifications




 Physical Status


Form Factor
micro-ATX


Dimensions
9.6"x9.6" (244mmx 244mm)


 Processor System


CPU
supports:
AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 4000 and 3000 Series Desktop Processors
3rd Gen AMD Ryzen™ Desktop Processors
2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics


Socket
AM4 PGA 1331


Power Design
105W


Chipset
AMD X570


 System Memory


Capacity
4 DIMM slots (2DPC)


Type
288-pin DDR4 ECC *  and non-ECC UDIMM
*  ECC support varies by CPU


DIMM Size Per DIMM
up to 32GB per DIMM


DIMM Frequency
AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics/ 3 rd  Gen AMD Ryzen™ Processors :
up to 3200 MHz
2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics:
up to 2666 MHz


Voltage
1.2V


 Expansion Slot


PCIe x 16
- SLOT6: PCIe x16 (PCIe 4.0 x16) *  [CPU], auto switch to x8 when SLOT4 is occupied
* Supports PCIe3.0 x8 when using 2 nd  Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics


PCIe x 8
- SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) *  [CPU]
* Disabled when using 2 nd  Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics


PCIe x 1
- SLOT5: PCIe 4.0 x1 *   * Supports PCIe3.0 when using 2 nd  Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics


M.2
1 M-key (PCIe4.0 *  x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0 *  x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570]
* Supports PCIe3.0 when using 2 nd  Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics


 Storage


SATA Controller
X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device


 Ethernet


Additional GbE Controller
2 RJ45 (1GbE) by Intel ®  i210


 Management


BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0


IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


 Graphics


Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics/ 2 nd  Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics:
1 HDMI


 Rear Panel I/O


HDMI
1


VGA Port
1


USB 3.2 Gen2 Port
2


Lan Port
2 RJ45(1GbE)


Dedicate LAN
1


Serial Port
1


UID Button/UID LED
1


 Internal Connector


Front Lan LED Connector
1 for LAN3/LAN4


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus


TR1 Header
1


TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)


IPMB Header
1


VGA Header
1


PMBus CONN
1


Buzzer
1


Fan Header
3 (6-pin), 3 (4-pin)


Front Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED


Speaker Header
1


BMC_SMB Header
1


Power Connector
1 ATX main power (24-pin), 1 ATX 12V (8-pin)


Clear CMOS
1 contact pads


 Onboard LED


Standby PWR LED 5vsb
1


80 Debug Port LED
1


Fan Fail LED
6


 System BIOS


BIOS Type
32MB AMI UEFI Legal BIOS


BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash


 Hardware Monitor


Temperature
CPU/ DRAM/ MB/ Card Side/X570 temperature sensing


Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control


Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

---
