Popis produktu

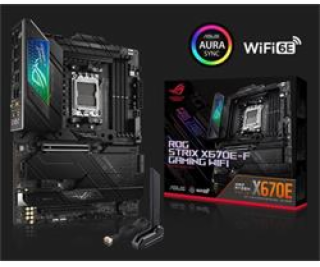

ROG STRIX X670E-F GAMING WIFI



CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*


* Refer to www.asus.com for CPU support list.


Chipset
AMD X670


Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports AMD EXTended Profiles for Overclocking (EXPO™)


OptiMem II


* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function


Graphics
1 x DisplayPort*


1 x HDMI port**


* Supports max. 8K@60Hz as specified in DisplayPort 1.4.


**Supports max. 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*


1 x PCIe 5.0 x16 slots (supports x16 mode)


AMD X670 Chipset**


1 x PCIe 4.0 x16 slot (supports x4 mode)


1 x PCIe 3.0 x1 slot


* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).


Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*


AMD Ryzen™ 7000 Series Desktop Processors


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)


AMD X670 Chipset


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


4 x SATA 6Gb/s ports


*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.


Ethernet
1 x Intel 2.5Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
Wi-Fi 6E


2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band


Bluetooth v5.2


USB
Rear USB (Total 12 ports)


1 x USB 3.2 Gen 2x2 port (1 x USB Type-C )


9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C )


2 x USB 2.0 ports


Front USB (Total 7 ports)


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


- Impedance sense for front and rear headphone outputs


- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


- Supports up to 32-Bit/384 kHz playback


Audio Features


- Audio Shielding


- Savitech SV3H712 AMP


- Gold-plated audio jacks


- Rear optical S/PDIF out port


- Premium audio capacitors


- Audio cover


Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x Type-C )


9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C )


2 x USB 2.0 ports


1 x DisplayPort


1 x HDMI port


1 x Wi-Fi Module


1 x Intel I225-V 2.5Gb Ethernet port


5 x Gold-plated audio jacks


1 x Optical S/PDIF out port


1 x BIOS FlashBack™ button


1 x Clear CMOS button


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


5 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connector


Storage related


4 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x Aura RGB header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 x Thunderbolt™ header


Special Features
Extreme Engine Digi+


- 5K Black Metallic Capacitors


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsinks


- M.2 heatsink backplate


- VRM heatsink design


ASUS EZ DIY


- BIOS FlashBack™ button


- BIOS FlashBack™ LED


- Clear CMOS button


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


Aura Sync


- Aura RGB header


- Addressable Gen 2 headers


Software Features
ROG Exclusive Software


- GameFirst VI


- ROG CPU-Z


- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


- Sonic Radar III


- DTS Sound Unbound


- Anti-virus software


ASUS Exclusive Software


Armoury Crate


- AIDA64 Extreme (60 days free trial)


- Aura Creator


- Aura Sync


- Fan Xpert 4 (with AI Cooling II)


- Power Saving


- Two-Way AI Noise Cancellation


AI Suite 3


TPU


DIGI+ VRM


Turbo app


PC Cleaner


MyAsus


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


Dynamic OC Switcher


FlexKey


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


2 x SATA 6Gb/s cables


Additional Cooling Kit


1 x Thermal pad for M.2


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x Cable ties pack


1 x M.2 Q-Latch package for M.2 backplate


1 x M.2 Q-Latch package


1 x ROG key chain


1 x ROG Strix stickers


1 x ROG Strix thank you card


2 x Rubber Packages for M.2


1 x Rubber Package for M.2 backplate


Documentation


1 x User guide


Operating System
Windows 11 64-bit


Form Factor
ATX Form Factor


12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

---
