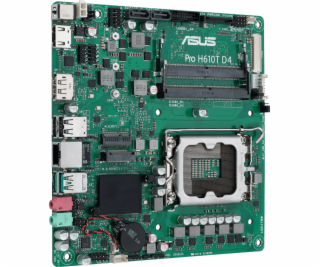

Pro H610T D4-CSM
Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability and efficiency.

Intel LGA 1700 socket: Ready for 12th Gen Intel processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express : Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes

CPU
Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** *CPU only support up to 65W *Refer to www.asus.com for CPU support list. **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x SO-DIMM, Max. 64GB, DDR4 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) *Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort** 1 x HDMI port*** 1 x LVDS connector *Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Storage
Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel 12th Gen Processors - 1 x M.2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 & SATA modes) Intel H610 Chipset - 2 x SATA 6.0 Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet ASUS LANGuard
USB
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI port 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x DC Power Connector (Support 19V)
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 2-pin +19V Power connector 1 x SATA power connector Storage related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header supports additional 4 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 ports AIO System related 1 x 2-pin internal DC power connector 1 x Stereo speaker connector 1 x DMIC header Flat panel display related 1 x Backlight inverter voltage selection header 1 x FPD brightness header 1 x Panel voltage selection header 1 x Panel off header Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x COM debug header 1 x Front Panel Audio header (AAFP) 1 x LVDS connector 1 x M.2 slot (Key E) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables 1 x SATA power cable Miscellaneous 2 x I/O Shields Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Thin Mini-ITX Form Factor 6.7”x 6.7” (17.0cm x 17.0cm)

---
