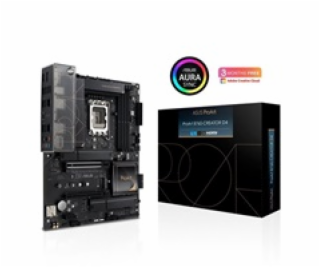

ProArt B760-CREATOR D4



CPU
Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12 th Gen Intel Core™, Pentium Gold and Celeron Processors


Supports Intel 10 nm CPU


Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset
Intel B760


Memory
4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports Intel Extreme Memory Profile (XMP)


OptiMem II


* Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ .


Graphics
1 x HDMI port**


1 x DisplayPort port***


* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.


** Support 4K@60Hz as specified in HDMI 2.1.


*** Support max. 8K@60Hz as specified in DisplayPort 1.4.


Expansion Slots
Intel 13 th & 12 th Gen Processors


1 x PCIe 5.0/4.0/3.0 x16 slot


Intel B760 Chipset*


1 x PCIe 4.0 x16 slot (supports x4 mode)


1 x PCIe 3.0 x1 slot**


** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.


Storage
Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*


Intel 13 th & 12 th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280/22110


- Intel 13 th & 12 th Gen processors support PCIe 4.0 x4 mode.


Intel B760 Chipset**


M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)***


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


4 x SATA 6Gb/s ports***


* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.


*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.


Ethernet
1 x Realtek 2.5Gb Ethernet


1 x Intel 1Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately.


USB
Rear USB (Total 9 ports)


1 x USB 3.2 Gen 2 Type-C port


4 x USB 3.2 Gen 1 ports (4 x Type-A)


4 x USB 2.0 ports (4 x Type-A)


Front USB (Total 7 ports)


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback


Audio Features


- Premium audio capacitors


- Dedicated audio PCB layers


- Audio cover


- Unique de-pop circuit


Back Panel I/O Ports
1 x USB 3.2 Gen 2 port (1 x USB Type-C)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


4 x USB 2.0 ports (4 x Type-A)


1 x DisplayPort


1 x HDMI port


1 x Realtek 2.5Gb Ethernet port


1 x Intel 1Gb Ethernet port


5 x Audio jacks


1 x Optical S/PDIF out port


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


4 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


1 x 4-pin +12V Power connector


Storage related


3 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )


1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x AURA RGB header


1 x Clear CMOS header


1 x COM Port header


1 x Front Panel Audio header (AAFP)


1 x M.2 slot (Key E)


1 x SPI TPM header (14-1pin)


1 x 20-5 pin System Panel header


1 x Thermal Sensor header


1 x Thunderbolt™ header


Special Features
ASUS 5X PROTECTION III


- DIGI+ VRM (- Digital power design with DrMOS)


- Enhanced DRAM Overcurrent Protection


- ESD Guards


- LANGuard


- Overvoltage Protection


- SafeSlot


- Stainless-Steel Back I/O


ASUS Q-Design


- M.2 Q-Latch


- Q-Connector


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- Flexible M.2 heatsink


- VRM heatsink design


ASUS EZ DIY


- ProCool


- Pre-mounted I/O shield


AURA Sync


- AURA RGB header


- Addressable Gen 2 headers


Software Features
ASUS Exclusive Software


Armoury Crate


- AURA Creator


- AURA Sync


- Fan Xpert 4


- Power Saving


- Two-Way AI Noise Cancelation


AI Suite 3


- Performance And Power Saving Utility


DIGI+ VRM


Turbo app


ASUS CPU-Z


IT Management software supported


- ASUS Control Center Express(ACCE)


ProArt Creator Hub


CreationFirst


Norton 360 Deluxe (60 Days Free Trial)


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


BIOS
128 Mb


Manageability
WOL by PME, PXE


Accessories
Cables


2 x SATA 6Gb/s cables


Miscellaneous


2 x M.2 Rubber packages


1 x Screw package for M.2 Key E


1 x ProArt ruler


1 x Q-connector


Documentation


1 x ACC Express Activation Key Card


1 x User guide


Operating System
Windows 11 64-bit, Windows 10 64-bit


Form Factor
ATX Form Factor


12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

---
