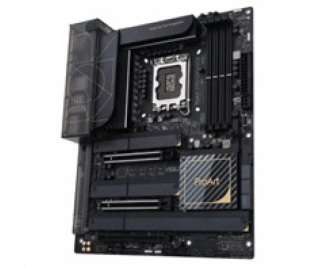

ProArt Z790-CREATOR WIFI
The ProArt Z790-Creator WiFi empowers creators of all levels by maximizing the performance of 13th & 12th Gen Intel Core™ processors with 16+1 teamed power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including Thunderbolt™ 4 (USB4 compliant), 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches.
CPU
Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z790 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x HDMI port** 2 x Intel Thunderbolt™ 4 ports (USB Type-C) support DisplayPort*** and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI 2.1. *** Support 8K@60Hz as specified in DisplayPort 1.4. **** Output at TBT4_E1 and TBT4_E2, the USB Type-C ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors or graphic cards resolution.
Expansion Slots
Intel 13th & 12th Gen Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel Z790 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 8 x SATA 6Gb/s ports** * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.
Ethernet
1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer s website for the latest specifications.
USB
Rear USB (Total 8 ports) 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD 3.0 / QC 4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box Headers - ProCool II - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s)
Software Features
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 with AI Cooling II - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
BIOS
256 Mb
Manageability
WOL by PME, PXE
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

---
