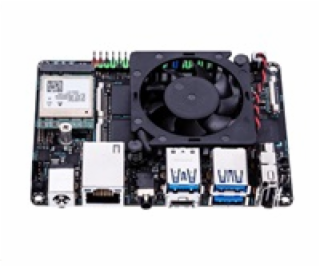

Tinker Edge R
Single-board computer for AI applications, with Arm big.LITTLE™ technology and Rockchip NPU, easy for Machine-Learning deployment.

Arm big.LITTLE™ A72+A53 Hexa-core SoC
Machine-Learning capability with Rockchip NPU
Multiple MIPI-CSI & DSI / HDMI / Type-C (DP)
40-pin GPIOs & mPCIe for multiple expansions
12V~19V DC-in offers stable power delivery
Linux & Android* supported
*July 2020 ready


TECHNICAL SPECIFICATIONS



SoC
Rockchip RK3399Pro


CPU
Dual-core ARM Cortex-A72 @ 1.8 GHz Quad-core ARM Cortex-A53 @ 1.4 GHz


GPU
ARM Mali™-T860 MP4 GPU @ 800 MHz


NN processor
Rockchip NPU


Display
1 x HDMI™ with CEC hardware ready 1 x USB Type-C (DP) 1 x 22-pin MIPI DSI (4 lane)


Memory Size
Dual-CH LPDDR4 4GB (SYSTEM) LPDDR3 2GB (NPU)


Storage
16GB eMMC Micro SD(TF) card slot (push/pull)


Connectivity
1 x RTL8211F-CG GbE LAN 1 x M.2 802.11 a/b/g/n/ac wireless & Bluetooth 5.0 (2T2R)


Audio
1 x 3.5mm audio jack (with Mic & plug-in detection) 1 x S/PDIF TX pin 1 x PCM/I2S pins


USB
3 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C OTG


Camera Interface
1 x 22-pin MIPI CSI-2 (4 lane) 1 x 22-pin MIPI CSI-2/DSI (4 lane) *


Expansions
1 x Mini PCIe slot (Full-Length, nano-SIM socket, for 4G/LTE)


Internal Headers
1 x 40-pin headers includes: - up to 28 x GPIO pins - up to 2 x SPI bus - up to 2 x I2C bus - up to 2 x UART - up to 3 x PWM - up to 1 x PCM/I2S - up to 1 x S/PDIF TX - 2 x 5V power pins - 2 x 3.3V power pins - 8 x ground pins 1 x 2-pin Recovery header 1 x 2-pin Power-on header 1 x 2-pin Reset header 1 x 2-pin DC Fan header 1 x 2-pin RTC Battery header 1 x 2-pin NPU UART header


Power Connector (up to 45W)
1 x 12-19V DC Power Input Jack (5.5/2.5mm) 1 x 12-19V 4-pin DC Power Input Header


OS Support
Debian 9 / Android 9


Dimensions
Pico-ITX, 3.9 inch x 2.8 inch (100 × 72 mm)


Environment
Operation temperature: 0°C - 60°C Non operation temperature: -40°C - 80°C Non operation humidity: 0% - 85% (Non condensing)


Note
* 3 MIPI interface, 1st CSI, 2nd DSI, and 3rd is CSI/DSI.

---
