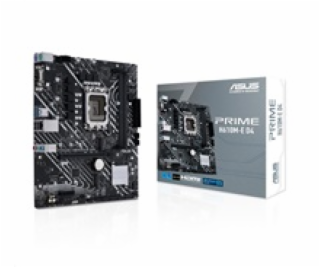

PRIME H610M-E D4

TECHNICAL SPECIFICATIONS



CPU
Intel Socket LGA1700 for 12 th Gen Intel Core™, Pentium Gold and Celeron Processors*


Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset
Intel H610 Chipset


Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports Intel Extreme Memory Profile (XMP)


* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).


Graphics
1 x DisplayPort**


1 x D-Sub port


1 x HDMI port***


* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.


** Supports max. 4K@60Hz as specified in DisplayPort 1.4.


*** Supports 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
Intel 12 th Gen Processors


1 x PCIe 4.0 x16 slot


Intel H610 Chipset


1 x PCIe 3.0 x1 slot


Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports


Intel H610 Chipset


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)


4 x SATA 6Gb/s ports


Ethernet
1 x Realtek 1Gb Ethernet


USB
Rear USB (Total 4 ports)


2 x USB 3.2 Gen 1 ports (2 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


Front USB (Total 6 ports)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback


Audio Features


- Audio Shielding


- Premium audio capacitors


- Dedicated audio PCB layers


* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.


Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


1 x DisplayPort


1 x D-Sub port


1 x HDMI port


1 x Realtek 1Gb Ethernet port


3 x Audio jacks


1 x PS/2 Keyboard (purple) port


1 x PS/2 Mouse (green) port


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


2 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


Storage related


2 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


1 x RGB header


1 x Clear CMOS header


1 x Front Panel Audio header (AAFP)


1 x COM Port header


1 x S/PDIF Out header


1 x Speaker header


1 x SPI TPM header (14-1pin)


1 x 10-1 pin System Panel header


Special Features
ASUS 5X PROTECTION III


- DIGI+ VRM


- LANGuard


- Overvoltage Protection


- SafeSlot Core


- Stainless-Steel Back I/O


ASUS Q-Design


- Q-DIMM


- Q-Slot


ASUS Thermal Solution


- Aluminum heatsink design


ASUS Lighting Control


- RGB header


Software Features
ASUS Exclusive Software


Armoury Crate


AI Suite 3


- Performance And Power Saving Utility


TurboV EVO


EPU


DIGI+ VRM


Fan Xpert 2+


ASUS CPU-Z


Norton Anti-virus software (Free Trial version)


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


BIOS
128 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


2 x SATA 6Gb/s cables


Miscellaneous


1 x I/O Shield


1 x M.2 SSD screw package


Installation Media


1 x Support DVD


Documentation


1 x User guide


Operating System
Windows 11 64-bit, Windows 10 64-bit


Form Factor
mATX Form Factor


9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )

---
