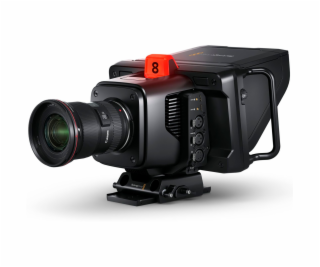

Blackmagic Studio Camera 6K Pro

With its large 6K Super-35 sensor and EF mount, the Blackmagic Studio Camera 6K Pro is the ideal studio camera for live, cinema-quality productions. Built-in ND filters reduce the amount of light hitting the sensor, allowing you to film in changing light conditions, even in bright sunlight. With the built-in streaming function, you can stream directly to the internet! 12G SDI, HDMI and 10G Ethernet connections are also provided. All connections can be integrated into an SMPTE-like fibre workflow via a single cable.

Features:


Eff. Sensor size: 23.10 mm x 12.99 mm (Super 35)
Lens mount: Active EF lens mount
Iris control: Iris, focus, zoom with supported lenses
Dynamic range: 13 stops
Dual Native ISO: 0 dB and 18 dB gain
Resolutions for recording:

6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5376 x 3024 (5.3K 16:9) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps


Video output:

2160p; 1080p; 1080i


Frame rates:

Supported project frame rates 23.98; 24; 25; 29.97; 30; 50; 59.94 and 60 fps.
Offspeed frame rates 5-50 fps in 6K and 5-60 fps for all other recording resolutions


Built-in ND filters: IR ND filter with the 4 positions: Clear (no filter), 2 stops , 4 stops and 6 stops .
Focusing: Autofocus available when using compatible lenses
Screen dimensions: 7 inch with 1920 x 1200 pixels
Screen type: LCD with capacitive touch screen
Screen brightness: 2000 cd/m2
Controls: Touch screen for camera settings and menus plus command dial, programme button, assignable function keys F1, F2 and F3, rotary controls for brightness, contrast and peaking
Tripod thread: 2x 1/4-inch tripod thread, 1x 3/8-inch tripod thread
Connections:

SDI video inputs: 1x
SDI video outputs: 1x
SDI rates: 1.5G, 3G, 6G, 12G
HDMI 2.0 video outputs: 1x


Analogue audio inputs:

2x XLR analogue audio inputs, switchable between mic and line levels. Supports phantom power
1 x 3.5mm stereo input. Can also be used as timecode input


Analogue audio outputs:

1x 5-pin XLR socket for talkback headset
1x 3.5mm TRRS mini jack for headphones with microphone


Analogue audio outputs:

1x 5-pin XLR socket for talkback headset
1x 3.5mm TRRS mini jack for headphones with microphone


SDI audio outputs:

2 channels programme audio embedded to 1.5G / 3G / 6G / 12G SDI
2 talkback channels on 15 and 16


Reference inputs: For Tri-Sync or Black Burst when used with an optional Blackmagic Studio Converter
Remote control: Remote control of the camera via SDI, HDMI or Ethernet
Ethernet: 10 Gbit / s
Computer interface:

2 USB Type-C 3.1 Gen 1 (up to 5 Gbps).
Expansion ports for connection to external recording devices as well as Focus and Zoom Demands
USB for software updates


Audio:

Microphones: Built-in stereo mic.
Built-in speaker: 1 mono speaker
Streaming: Direct streaming

The Blackmagic Studio Camera 6K Pro supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP) or via USB-C over a shared mobile internet connection.




Streaming platforms

ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo


Media: 2x USB-C 3.1 Gen 1 expansion ports for external media to record in Blackmagic RAW
Power supply: 1x external 12V DC power supply for 60 watts
Dimensions: 273.6 x 199 x 167
Max. rozlišení videa (pixel): 6144 x 3456
4k video záznam (UHD): ano
Full HD- Záznam: ano
zásobování energií: Síť
Typ: LCD
Touchscreen: ano
Diagonála displeje (cm): 17,78
Diagonála displeje (palce ): 7
Sensor Chip: CMOS
Velikost senzoru: 23,10 x 12,99 mm (Super 35)
SDI vstup: 1x
SDI výstup: 1x
HDMI: ano
XLR- Vstupy: 2x
Připojení mikrofonu: 3,5 mm zdířka
Připojení sluchátek: ano
USB: 2x USB-C 3.1 Gen 1 (5 GBit/s)
Výměnná optika: ano
Závit objektivu: EF-Mount
Manuální vyvážení bílé barvy: ano
Automatické vyvážení bílé barvy: ano
Barva: černá
Šířka (mm): 273
Výška (mm): 199
Hloubka (mm): 167,3
RAW: ano

---
