Popis produktu

Počet: 1x
Provedení: CEE
Konstrukce: Zástrčka
Počet zásuvek: 9
Třída ochrany (IP kód): IP44
Počet: 3x
Provedení: CEE
Typ: Elektrický rozvaděč
Délka kabelu (m): 2.0
Barva: černá
Počet: 6x
Provedení: Ochranný kontakt (Typ F)

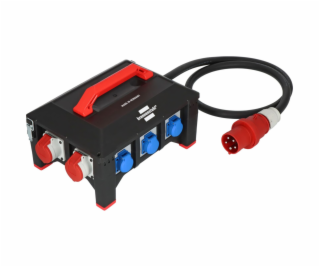

Brennenstuhl Professional Rubber Distribution Board BSV 5-63A with all-current sensitive FI personal protection switch type B

The Professional rubber power distributor with 2m oil-resistant RN cable (H07RN-F 5G16,0) is used to increase safety for people and environment on construction sites thanks to the type B fault current protection device.This FI protection based on the standard VDE 0100-704:2018-10 and will provide even more safety on construction sites in the future. The type B residual current protection device is required because smooth or nearly smooth direct fault currents occur that are not detected by a type A residual current protection circuit breaker. Comprehensive protection of people and equipment is therefore only guaranteed with an all-current type B fault current device (in accordance with the new standard DIN VDE 0100-704). The extremely robust construction site distributor with self-closing lid with practical quick-release lock and sturdy hinges is resistant to various oils, greases, petrol and acids, UV and ozone radiation.

Features:


With FI type B (all current sensitive) circuit breaker 30mA
With the FI and LS switches, the power distribution unit offers high operational safety
Connected power from 11 to 44 kVA
Operation of several consumers at one AC/DC connection point with plug-in systems according to IEC 60309
Protection class: IP44
Rated current (FI): 63A
Number of poles (FI): 4
Number of circuit breakers: 6 (1x LS 400V/32A 3-pin/pin; 2x LS 400V/16A 3-pin/pin; 3x LS 230V/16A 1-pin/pin)
Plug system connector: CEE 63A 3P+N+PE (5p) 400V
CEE socket - 16A: CEE 2x 16A 3P+N+PE (5p) 400V
CEE socket - 32A: CEE 1x 32A 3P+N+PE (5p) 400V
Number of protective contact sockets: 6
Number of CEE sockets total: 3
Number of sockets: 9
FI switch: FI with IFN 0.03 A (standard)
For use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and constant outdoor use
Category 2 equipment (K2 DGUV 203-005): Used for rough operation with high mechanical, physical and chemical effects
Handle
Suitable for outdoor use
Dimensions (L x W x H): 31 x 58 x 30 cm
Weight: 10,12 kg

---
