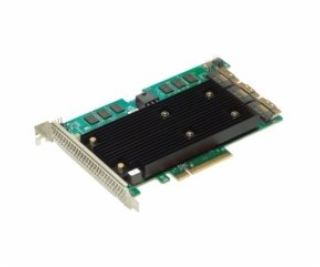

MegaRAID 9670-24i


Deliver breakthrough RAID rebuild times with 2x the bandwidth and more than 2x the RAID 5 IOPS



The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency and 60x increase in performance during rebuilds over the previous generation.


The MegaRAID 9670-24i adapter, based on the SAS4124 RAID-on-Chip (RoC), integrates a 2x72-bit high-speed DDR memory interface delivering faster speeds at 3,200 MT/s and more than 4x increase in RAID5 Random Write IOPs over previous generation adapters. Gain the most flexibility out of your storage controller by direct connecting up to 24 Gen 4.0 NVMe, 24G SAS or SATA devices.

Key features include:



Low profile, half-length x8 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
SFF-8654 (SlimSAS) x8 connectors
Form-factor friendly cable exit
Hardware Secure Boot and SPDM Attestation support
Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
SFF-TA-1005 Universa Bay Management (UBM) Ready
Add more protection and peace of mind with CacheVault flash cache protection






Product
Manufacturer Part #
What's in the Box




MegaRAID 9670-24i

05-50123-00


MegaRAID 9670-24i, FH (attached), LP bracket



CVPM05
05-50039-00
CacheVault Power Module (CVPM05) with 24" remote extender











Specification
Value




Lifecycle
Active


Distributor Inventory
No


Cache Memory
8GB


Cache Protection
CacheVault CVPM05


Connectors
3x8 SFF-8654


Devices Supported
SAS/SATA: 240, NVMe: 32


Generation
24G


Internal Ports
24


Management Software
LSI Storage Authority (LSA), StorCLI2 (Command-Line Interface), HII (UEFI Human Interface Infrastructure


MTBF
>3,000,000 hours at 40° C


Operating Humidity
5% to 90% Non-condensing


Operating Temperature°C
0°C to 55°C


OS
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD


OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD, Linux (Oracle, SuSE, Red Hat)


Physical Dimensions
6.1279" x 4.3759" (155.65mm x 111.15mm)


RAID Levels
0, 1, 5, 6, 10, 50, 60


Regulatory Certifications
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE


Typical Power
24W


Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba

---
