Popis produktu

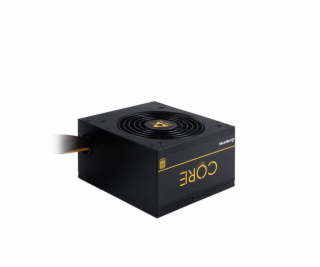

CHIEFTEC BBS-500S

80 PLUS Gold Efficiency
Compact size with only 140mm depth
500-700W power output
Motherboard, CPU and PCI-E cable lengths of 650mm

With the Core Series, Chieftec has brought an 80 PLUS Gold certified PSU to market, offering the best possible value for money. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is ideal for customers who want top-tier power output at the most attractive price.
TECHNICAL SPECIFICATIONS



PERFORMANCE



Model
Core 500W


Article no.
BBS-500S


EAN code
0753263076120


Weight (without/with package)
1.65kg / 2.06kg


AC Input
100-240V / 8.0A


Frequency
47 - 63Hz


+5V
18A


+3,3V
18A


+5V & +3,3V combined
100W


+12V 1
492W / 41A


+12V 2
-


+12V 1 & +12V 2 combined
-


P.F.
>0,9


-12V
0,3A / 3,6W


+5VsB
2,5A / 12,5W


Maximum Power
500W






CONNECTORS



24PIN ATX
1


8 PIN EPS (4+4)
1


8 PIN PCIe (6+2)
1


SATA
4


MOLEX
3


FLOPPY
1






CABLE LENGHT



24PIN ATX
650


8 PIN EPS (4+4)
650


8 PIN PCIe (6+2)
500


SATA
500/150/150


SATA
500


MOLEX
500/150/150/150


FLOPPY
Molex






FEATURES



Specification
ATX 12V 2.3


Form Factor
PS II


Efficiency
80 PLUS Gold


Dimension (DxWxH)
140 mm x 150 mm x 86 mm


PFC
Active PFC


Fan
120mm silent fan


Security
OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) No-load operation


Warranty
36 Months

---
