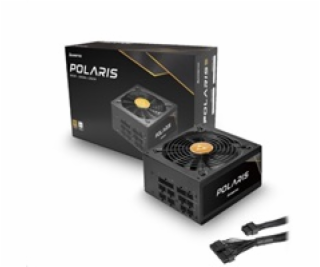

POLARIS SERIES

80 PLUS Gold certified efficiency
Fully modular cable management
LLC Half-Bridge converter with DC-to-DC technology


TECHNICAL SPECIFICATIONS



Model
POLARIS 1050W


Article no.
PPS-1050FC


EAN code
0753263077363


Weight (wthout/with package)
2.6 kg / 3.4 kg


AC input
100 - 240 V / 15A


Frequency
50 - 60 Hz


+5V
22 A


+3.3 V
22 A


+5 V & +3.3 V combined
120 W


+12 V1
87.5 A


+12V2
-


+12V1, +12V2 combined
1050 W


P.F.
>0.9


-12 V
0.3 A / 3.6 W


+ 5VBS
3.0 A / 15 W


Maximum Power
1050 W


Connectors


20+4 PIN ATX
1


8 PIN EPS (4+4)
2


8 PIN PCIe (6+2)
6


SATA
12


MOLEX
4


Cable length (mm)


20+4 PIN ATX
650


8 PIN EPS (4+4)
2 x 650


8 PIN PCIe (6+2)
2 x 600/100


SATA
3 x 550/100/100/100


MOLEX / FLOPPY
550/100/100/100


Features


ATX12V Version
ATX 12V 2.3


Efficiency
80+ Gold


Dimension (D x W x H)
160 x 150 x 86 mm


PFC
Active PFC


Fan
140 mm silent fan


Security
AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)


Warranty
24 Months

---
