Popis produktu

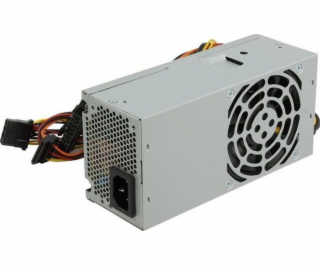

GPF-300P




The latest generation of TFX power supplies comes with a new model: GPF-300P (12V version 2.3). Equipped with both a state-of-the-art interior and 80PLUS Bronze efficiency, this power supply is ideal for home entertainment systems or small size systems. Compatible with both Intel/AMD processors, featuring with active PFC and a smooth running, temperature-controlled fan, the CHIEFTEC GPF-300P provides reliable performance for enthusiast seeking for efficiency.

SPECIFICATIONS:

Performance



Model
Smart 300W


Article no.
GPF-300P


EAN code
4710713234666


Weight (without/with package)
1.07 kg / 1.13 kg


AC Input
115-230V / 6.3A


Frequency
47-63Hz


+5V
15A


+3,3V
16A


+5V & +3,3V combined
95W


+12V 1
14A


+12V 2
15A


+12V 1 & +12V 2 combined
-


P.F.
>0,9


-12V
0,3A / 3,6W


+5VsB
2.0A / 10W


Maximum Power
300W




Connectors



20+4PIN ATX
1


8 PIN EPS (4+4 )
1


SATA
4


MOLEX
2


FLOPPY
1




Cable length



20+4PIN ATX
300


8 PIN EPS (4+4 )
350


MOLEX/MOLEX/FLOPPY
350/150/150


SATA
2x 350/150




Features



Spe c ification
ATX 12V 2.3


Form factor
PS II


Efficiency
80 PLUS Bronze


Dimension (DxWxH)
175mm x 85mm x 65mm


PFC
Active PFC (0.9)


Fan
80mm silent fan


Security


AFC (Automatic Fanspeed Control)
OPP (Overload Protection)
OVP (Overvoltage Protection)
SCP (Short-circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage Protection)




Warranty
24 Months

---
