USB Gen1 Type-C 7-in-1 hub with 2x HDMI, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port

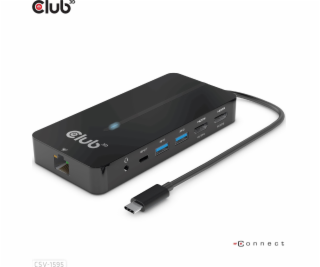

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.2 Alt mode supported USB Gen1 Type-C hosts.

Support dual displays for Mac M1 users.
Support DP™1.2 Alt mode
Support HDMI™ max 4K@60Hz from the USB Type-C Display Alternate Mode function
Support HDMI™ max 4K@30Hz from the integrated chipset in the dock - make sure to install the driver from our website at www.club-3d.com
Support HDCP1.4, HDCP 2.2 ( on the HDMI with AltMode Function only)
Support dual displays for Mac M1 users.
Max 5Gbps data transmission per USB Gen1 Type-A port
Support max 7.5W(5V/1.5A) downstream charging,
2 USB Gen1 Type-A BC 1.2
Support Gigabit Ethernet 10M/100M/1000M, RJ45
Support Audio output
Support 1x USB Type C Female PD3.0 with max 100W PD charging and Gen1 5Gbps of data transfer


TECHNICAL SPECIFICATIONS



Input
USB Gen1 Type-C Male (Connect to host) Support DP™1.2 Alt mode Note: To get max bandwidth, the host should support DP™1.2 Alt mode


Output (s)
Output: Single and Dual displays • 1x HDMI™ Support max 4K@30Hz Support 8/10 bit color depth output Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2 • 1x HDMI™ Alt Mode Support max 4K@60Hz Support 8/10 bit color depth output Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2 Support HDCP 2.2 Note: The max resolution of the display determined by the computer and the monitor • 2x USB Gen1 Type-A Max 5Gbps data transmission per port Support max 7.5W(5V/1.5A) downstream charging Support short-circuit, over-current, over-voltage protection • 1x RJ45 Support Gigabit Ethernet, 10M/100M/1000M Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data • 1x 3.5mm Audio jack Support Mic in with digital audio max 48K/16bit sampling rate • 1x USB Gen1 Type-C Female (for PD Charging) Support max 100W PD charging Support PD3.0 Fast Role Swap Support Gen 1 - 5Gbps of data transfer


OS Support
All


In the box
1x USB Gen1 Type-C 7-in-1 hub with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port 1x Quick Install Guide (QIG)


Other info
• Box size: 21 x 21 x 3.5 cm / 8.27 x 8.27 x 1.38 • Cable length: ± 25 cm / ± 9.84 • Total length: ± 39 m / 15.35 • Hub dimensions: 14 x 6.5c x 1.9 cm / 5.51 x 2.56 x 0.75 • Product Weight: 210 gr / 7.41 oz • Box Weight: 70 gr / 2.47 oz • LDPE Bag Weight: 6 gr / 0.21 oz • Total Weight: 286 gr / 10.09 oz • Meets ROHS, FCC, and CE EMI requirements

---
