HDMI™ to DisplayPort™ 4K60Hz M/F Active

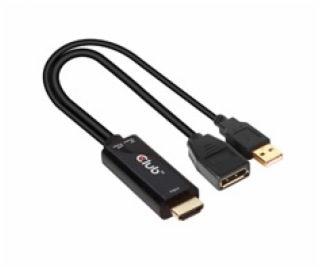

The Club 3D CAC-1331 is an HDMI™ to DisplayPort™ 1.2 Active Adapter which allows you to transmit a HDMI™ signal into a DisplayPort™signal. This product supports DP1.2 specification with resolution up to 4096 x 2160@60Hz. Besides, it is equipped with USB Type A port to supply power in case there isn’t enough power from the HDMI™ source. This Adapter is Uni-Directional.
Please use one of our (Extension)HDMI™ and/or DisplayPort™ cables to connect from the adapter to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
TECHNICAL SPECIFICATIONS



Product Name
HDMI™ to DisplayPort™ 1.2 4K60Hz M/F Active Adapter


Product Series
Adapter


Itemcode
CAC-1331


EAN code
8719214471484


UPC code
841615101665


Features


HDMI™ 2.0 support: - HDCP1.4/2.2 - 8/10/12-bit Deep Color - Status and Control Data Channel (SCDC)



DisplayPort™ 1.2 support: - DP1.2a compliant - Resolution up to 4K60Hz - Support Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate - Support 8/10/12-bit Deep Color - Support Hot-Plug Detect



Gold plated connectors




OS Support


All




In the box


CAC-1331 - HDMI™ to DisplayPort™ 1.2 4K60Hz M/F Active adapter




Input


1x HDMI™ (Male)
1x USB Type A for power




Output


DisplayPort™ 1.2 (Female)




Other info


Box size 14.5 x 14.5 x 3 cm
Box size: 5.7 x 5.7 x 1.2 inch
Device size: 2 x 1.1 x 25 cm
Device size: 0.8 x 0.4 x 9.84 inch
Device Weight: 42 gr / 1.5 oz:
Total Cable length 25 cm / 9.84 inch
Connector dimensions :
HDMI™ Male 4.8 x 1.1 x 2.1 cm / 1.89 x 0.43 x 0.83 inch
DisplayPort™ Female 2 x 3.5 x 1.1 cm / 0.79 x 1.38 x 0.43 inch
USB Type A Male 3.7 x 0.7 x 1.5 cm / 1.46 x 0.28 x 0.6 inch
Box Weight: 18 gr / 0.7 oz
Total Weight: 60 gr / 2.2 oz
Meets ROHS, FCC, and CE EMI requirements

---
