Popis produktu

HDMI + Micro USB to DisplayPort 4K120Hz or 8K30Hz M/F Active Adapter
The Club 3D CAC-1335 is the perfect solution to connect to any DisplayPort™ 8K30Hz or 4K120Hz ready displays from a HDMI™ source which does supports these resolutions/specifications. If you have a PC or any other device that lacks the new DisplayPort™ 8K30Hz or 4K120Hz specifications, the Club3D CAC-1335 will be the simple way to connect your HDMI™ source device to your new 4K120Hz or 8K30Hz display(provided your source supports these resolutions). The Adapter is powered thru a Micro USB port(5V/1.5A). An USB Type-A to Micro USB M/M 1m / 3.28 ft is supplied in the box.

Compliant with VESA DisplayPort™ Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
Compliant with HDMI™ Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
Support Max. resolution/refresh rates up to 4K120Hz or 8K30Hz
Adapter is separatly powered thru a Micro USB Female port 7.5Watt (5V/1.5A)
USB Type-A to Micro USB M/M 1m / 3.28 ft cable is supplied in the box

TECHNICAL SPECIFICATIONS



OS Support
Microsoft, Mac OS


In the box

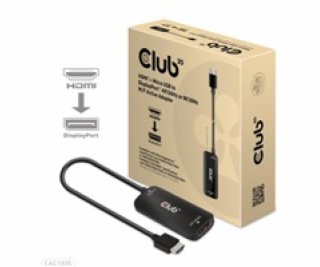

- CAC-1335 HDMI™+ Micro USB to DisplayPort™ 4K120Hz or 8K30Hz M/F Active Adapter - USB Type-A to Micro USB M/M 1m / 3.28 ft cable for powering the adapter


Available Interfaces
Input : - 1x HDMI™ (Male) - 1x Micro USB (Female) Output : 1x DisplayPort™ (Female)


Other info
- Box size 14.5 x 14.5 x 4.5 cm / 5.71 x 5.71 x 1.77 - Device size: 7.2 x 3 x 1.2 cm / 2.83 x 1.18 x 0.47 - Device Weight: 28 gr / 0.99 oz - Total Cable length: Approx. 26 cm / 10.24 - Power Cable length: 1m / 3.28 Ft - Power Cable Weigth: 21 gr / 0.74 oz - LDPE Bag Weight: 5gr / 0.18 oz - Connector dimensions : - HDMI™ Male: 4 x 0.7 x 1.8 cm / - USB Type-A Male: 3.7 x 0.7 x 1.5 cm / 1.46 x 0.28 x 0.6 - Micro USB Male: 2.8 x 0.6 x 1 cm / 1.1 x 0.24 x 0.39 - Box Weight: 45 gr / 1.59 oz - Total Weight: 99 gr / 3.5 oz - Meets ROHS, FCC, and CE EMI requirements

---

Našli ste v tomto popise chybu? Prosím kontakujte nás na email: info@mader.sk
Rada výrobcov si vyhradzuje právo na zmenu niektorých parametrov, či vlastností bez predchadzajúceho upozornenia.
