Popis produktu

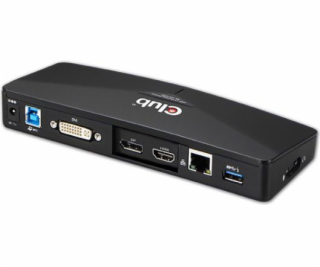

USB 3.0 + Mini DisplayPort™ MST Docking Station CSV-3203 The SenseVision USB 3.1 Gen1 + Mini DP Docking Station can easily connect to your Microsoft Surface Pro 2/3/4 Tablet or Laptop and enable connectivity to a full range of peripherals like keyboards, mice and storage devices. It has three built-in USB 3.1 Gen1 ports, two MiniDisplayPort™ 1.2 outputs and one Gigabit Ethernet port. You can even extend the connections of the USB ports further to add more peripherals or USB devices. Featuring Multi Stream Transport technology, it supports dual screen setup with resolutions up to 2 x 2560x1600p 60Hz. ?Dual Mode DisplayPort™ (DP++) The MST Hub supports Dual Mode DisplayPort™ (DP++) which allows the use of DVI or HDMI™ Monitors via passive Adapters.
Flexibility Ultrabooks, Tablets and other slim notebook computers are sleek but they often lack connectivity possibilities. With SenseVision USB 3.1 Gen1 + Dual Mini DP docking station you have access to all your devices through just a single USB 3.0 and Mini DisplayPort™ cable.
Add on Get even more from your Surface Pro 2/ 3/4 tablet with its powerful Mini DisplayPort™ output. Microsoft Surface Pro tablets have powerful Intel Core CPU’s and are capable to drive up to 2 external displays using Multi Stream Transport.
Scan button The SenseVision USB 3.1 Gen1 + Dual Mini DP docking station features a scan button which can/should be used when the PC does not recognize the connected screens.

TECHNICAL SPECIFICATIONS



Product Name
USB 3.1 Gen1 + Mini DisplayPort MST Docking Station


Product Series
SenseVision


Item Code
CSV-3203


EAN
8717249401025


UPC Code
854365005855


Inteface
USB 3.1 Gen1 & Mini DisplayPort 1.2


Voltage
DC 19.5V


Output
2x Mini Displayport 1.2 3x USB 3.1 Gen1 Type A 1x Gigabit Ehternet RJ45


Features
• Compliant with DisplayPort™ 1.2 secifications • Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source • Supports DP 1.2 Multi-Stream Transport (MST) • Supported Max Resolutions: For Single Screen Setup: 3840x2160 @ 60Hz For Dual Screen Setup: 2 x 2560x1600 @ 60Hz • Expands a USB 3.1 Gen1 port to three USB 3.1 Gen1 ports • Gigabit Ethernet 10/100/1000 port • Ethernet supports Wake-on-LAN technology, crossover detection • Power Adapter: 100-240VAC, 50/60Hz, operating 19.5W


Package Contents
Club 3D SenseVision USB 3.1 Gen1 + Mini DisplayPort MST Docking Station CD driver Power Adapter


Supported Operating Systems
Windows 10, 8.1

---
