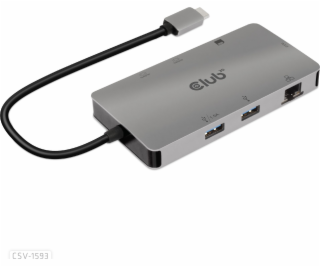

USB 3.2 Gen1 Type-C 8-in-1 hub with 2x HDMI, 2x USB-A, RJ45, SD/ Micro SD card slots and USB Type-C female port
The Club 3D CSV-1593 USB 3.2 Gen1 Type-C 8-in-1 hub with 2 HDMI™, 2 USB-A, RJ45, SD/Micro SD card slots and Type-C female port, providing an ideal solution for extending your USB3.2 Gen1 Type-C or Thunderbolt™3 host port (PC/Laptop/Mobile phone,etc.). Especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode support, enabling to output HDMI™ video with max 4k60Hz or dual max 4K30Hz under MST mode and simultanuously transfer USB 3.2Gen1 data with max 5Gbps. 2x USB Type-A ports allow you to connect 2 USB devices simultaneously. The SD/Micro SD ports allow to insert 2 card into the slots simultaneously for data transmission or for reading/writing information on the host. The RJ45 port allows the host to get access to Gigabit Ethernet. Besides, the USB 3.2 Gen1 Type-C female supports PD 3.0 with max. 100W PD Charging. It can work on all USB3.2 Gen1 Type-C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode). When working on Thunderbolt™3 host, this product transmits DP signal.

TECHNICAL SPECIFICATIONS



Product Name
USB 3.2 Gen1 Type-C 8-in-1 hub with 2x HDMI™, 2x USB-A, RJ45, SD/Micro SD card slots and USB Type-C female port


Product Series
Docking


Upstream
- USB 3.2 Gen1 Type-C Male(Connect to host) - Support DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), downward compatible with DP1.2 Alt mode - Support DSC


Downstream
- HDMI™x2 - Support HDMI™ max 4K/60Hz, 4:4:4, 8bit with 18Gbps Bandwidth - Support Dual max 4K/30Hz under MST mode (Windows™ System) - Support Dual max 4K/60Hz under SST mode (Mac™ System ONLY) - Support 8/10/12 bit color depth output - Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/YCbCr420 - Support HDCP 2.2&HDCP1.4


USB3.2 Gen1 Type-A - 1x USB3.2 Type-A port supports BC 1.2 with max 7.5W(5V/1.5A) downstream charging, 1x USB Type-A share max 8W (5V/1.6A) downstream charging. - Max 5Gbps bandwidth per USB-A port SD/Micro SD - Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) - Allow 2 card slots to work simultaneously RJ45 (Gigabit Ethernet) - Support 10M/100M/1000M USB 3.2 Gen1 Type-C Female (for PD Charging) - Supports PD Charging 100W (20V/5A) Support for Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter - 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host


OS Support
All


In the box
1x USB 3.2 Gen1 Type-C 8-in-1 hub with 2x HDMI™, 2x USB-A, RJ45, SD/Micro SD card slots and USB3.2 Gen1 Type-C female port


Input
USB 3.2 Gen1 Type-C Male(Connect to host)


Output
2x HDMI™ female 2x USB3.2 Gen1 Type-A Female 1x SD Card Slot 1x Micro SD Card Slot 1x RJ45 jack 1x USB 3.2 Gen1 Type-C Female


Box size
7 x 32 x 3.5 cm / 2.76 x 12.6 x 1.38


Cable length approx
14 cm / 5.5


Hub dimensions
11.5 x 5.9 x 1.42 cm / 4.53 x 2.32 x 0.55


Connector dimensions
3.4 x 1.2 x x 0.65 cm / 0.86 x 0.47 x 0.26


Product Weight
116 gr / 4.09 oz


Box Weight
42 gr / 1.48 oz


LDPE Bag Weight
6 gr / 0.21 oz


Total Weight
122 gr / 4.30 oz

---
