Popis produktu

USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
The Club 3D CSV-1543 is an USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports.The two USB Type-A ports are designed for transmitting data and one of the two USB Type-A ports can provide 1.5A charging for the connected USB Type-A devices (mobile phones, tablets, U-disk, etc). One of the two USB Type-C ports is designed for transmitting data and charging for the connected USB Type-C device, the other USB Type-C port supports both data and PD3.0 charging. It can work on any USB Type-C host (PC, notebook, tablet, Mobile phone, etc) that supports DP Alt mode. High Power Conversion Efficiency means low power consumption and low heating 98.2%@Vin=5V ; 92.5% @Vin=20V. Advanced Power Management. The output power will guarantee uninterrupted working of USB Type-A SSD and U Disk when the Vin is in 5; 20V, so the connected USB device will not get disconnected while plugging in and out the PD Charger from the USB Type-C charging port. Supported USB device current is as follows: 1.5A @PD3.0 device

High Power Conversion Efficiency, means low power consumption and low heating, 98.2%@Vin=5V ; 92.5% @Vin=20V
Advanced Power Management
Support Fast Role Swap of PD 3.0
Support USB Type-C input, 2x USB Type-C + 2x USB Type-A output
Compliant with USB 3.1 specification and downward compatible with lower versions

TECHNICAL SPECIFICATIONS



USB Type-A
- Both USB Type-A ports support max. 10Gbps data transmission - 1 USB Type-A supports 5V/1.5A downstream charging(when Type-C PD power Charger is connected)


USB Type-C
- 1 USB Type-C port supports max. 10Gbps data transmission speed - Another Type-C port supports max. 10Gbps as downstream data port and max 100W PD charging as upstream charging port - When USB Type-C PD power Charger is connected, the max output of 2x USB Type-A and 1 USB Type-C downstream ports is 3A - When USB Type-C PD power Charger is not connected, the max output of all the downstream ports depends on the host eg:1.5A on macbook ,900mA on Chromebook, etc., depending on the specifications of your host device.


OS Support
All


In the box

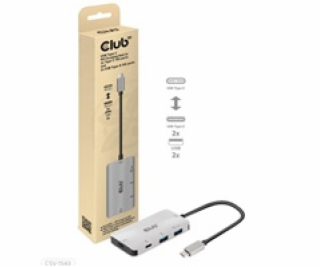

CSV-1543 USB Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports


Available Interfaces
Input : - 1x USB Gen2 Type-C Male Output : - 1x USB Type-C Female for Data - 1x USB Type-C Female for Data and Charging - 1x USB Type-A Female for Data - 1x USB Type-A Female for Data and Charging(Max.1.5A when a USB Type-C PD Power Charger is connected)


Other info
- Box size: 7 x 32 x 3.5cm 2.76 x 12.6 x 1.38 - Device size: 8.5 x 4.5 x 1.2 cm / 3.35 x 1.77 x 0.47 - Total Length: 25.4 cm / 10 - USB Type-C connector dimensions: 3.4 x 1.3 x 0.7 cm / 1.34 x 0.51 x 0.28 - Device Weight: 60 gr / 2.12 oz - Box Weight: 42 gr / 1.48 oz - LDPE Bag Weight: 3 gr / 0.1 oz - Total Weight: 105 gr / 3.7X oz - Meets ROHS, FCC, and CE EMI requirements

---
