Popis produktu

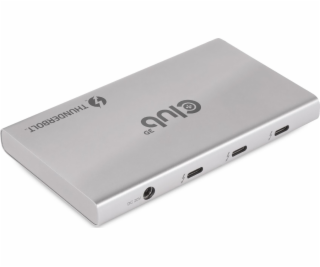

Thunderbolt™4 Portable 5-in-1 Hub with Smart Power
The Club 3D CSV-1580 is a Certified Thunderbolt™ 4 portable Hub which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. For the first time this Thunderbolt™ 4 modern Hub has 3 Thunderbolt™ 4 downstream ports that allow you to cascade Thunderbolt™ 4 devices to one 8K30Hz or two 4K60Hz monitors, it can also easily connect to any USB Type-C device, all while simultaneously charging the PC. Besides, it supports Smart Power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions.

Adopting Goshen Ridge solution
Slim compact aluminium design
Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions
Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3,DP™ Alt mode,USB protocol
3x Thunderbolt™ 4 downstream ports ,allow you to cascade Thunderbolt™ devices
3x Thunderbolt™ 4 downstream ports support USB Gen2 with max 10Gbps data transfer(NO support for PD power adapter)
3x Thunderbolt™ 4 downstream ports support max. 8K30Hz for one video output or dual 4K/60Hz Max. The maximum resolution for connecting a single monitor is also 8K30Hz.
Self-powered from DC power adapter with max 60W for host, max 85W for host and Hub
Support Smart Power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices, to take full advantage of provided power from the external DC power adapter:

more power will be dedicated for charging the host if the downstream ports of the Hub consume less power
when the power consumption of the Hub and the connected device increases, the power dedicated for charging your host will decrease accordingly.




TECHNICAL SPECIFICATIONS



OS Support
- Windows10™ or above version supported Thunderbolt™ 4 host - MacOS™ 11 or above version supported Thunderbolt™ 3 host


In the box
- CSV-1580 Thunderbolt™ 4 Portable 5-in-1 Hub with Smart Power - Power Adapter 100W 20V5A - CAC-1571, USB4™ Type-C Gen3x2 Bi-Directional Cable 40Gbps 8K60Hz 100W PowerDelivery M/M 0.8m / 2.62ft - QIG, Quick Installation Guide


Available Interfaces
Upstream : - 1x Thunderbolt™ 4 Receptacle (to host) Support max 60W, 5V/9V/15V/20V@3A Host charging Downstream : - 3x Thunderbolt™ 4 Receptacle - 1x USB Gen2 Type-A, Max. 10Gbps data transmission, downward compatible with lower versions, Max. 900mA downstream charging


Box size
22 x 15 x 7cm / 8.6 x 5.9 x 2.76


Hub dimensions
12.4 x 7.4 x 1.3 cm / 4.88 x 2.91 x 0.51


Power Supply dimensions
15.5 x 5.7 x 3.4 cm / 6.1 x 2.24 x 1.34


Power Cable Length approx
1.8 m / 6 ft


Product Weight
165 gr / 5.82 oz


CAC-1571 Product Weight
73 gr / 2.58 oz


Power Supply Weight
595 gr / 20.99 oz


Box Weight
126 gr / 4.44 oz


Total Weight
959 gr / 33.83 oz

---
