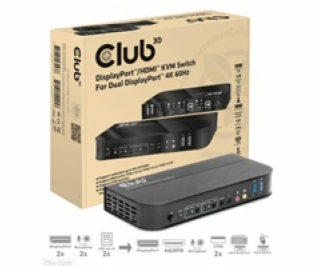

DisplayPort/HDMI KVM Switch For Dual DisplayPort 4K 60Hz
The CSV-7210 is a high performance DisplayPort™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any DisplayPort™ source to any HDMI™ or DisplayPort™ supported display. This DisplayPort™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.

Support resolution up to 4Kx2K@60Hz
Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Support KVM function
Support a DisplayPort™ or HDMI™ display and a set of Keyboard and Mouse to control two PCs with DisplayPort™ ports
DisplayPort™

Support 8.1Gbps per channel (32.4Gbps all channels) bandwidth
Support 16bit per channel (48bit all channels) deep color
Support HDR


HDMI™

Support 6Gbps per channel (18Gbps all channels) bandwidth
Support 12bit per channel (36bit all channels) deep color
Support HDCP 2.2/1.4
Support HDR


Support infrared remote control function
Support for switching LED indications


TECHNICAL SPECIFICATIONS



Supported resolution
Max Resolution: 3840*2160@60Hz , 4096*2160@


Input
• PC 1: DisplayPort™ + USB + Mic + Stereo Portt • PC 2: DisplayPort™ + USB + Mic + Stereo Port • 3.5mm Mic Input port • DC 5V - Power Supply Unit


Output
• 1x HDMI™ Female • 1x DisplayPort™ Female • 1x MIC • 1x Stereo Jack • 1x USB Mouse connection • 1x USB Keyboard connection • 3.5mm Stereo port


OS Support
Windows/Linux/Apple Mac OS


In the box
• CSV-7210 DisplayPort™ KVM Switch x 1 • External Power Supply 5V 3A x 1 • IR Remote Control x1 • IR Extender x1 • USB Type B Male to USB A Male cable x2 • Quick Installation Guide


Other info
• Box size: 23 x 21 x 6.5 cm / 9.05 x 7.08 x 2.56 • Device size: 17.8 x7.5 x 2.6 cm/ 7.0 x 2.95 x 1.02 • Box Weight: 147 gr / 5.185 oz • Device Weight: 370 gr / 13.05 oz • USB Type B Male cable Weight: 54 gr / 1.91 oz - 2x 108 gr / 3.81 oz • IR Remote Control incl. battery Weight: 16 gr / 0.57 oz • IR Extender Weight: 33 gr / 1.16 oz • Power Adapter Weight: 107 gr / 3.77 oz • LDPE Bag Weight: 6 gr / 0.21 oz • Total Weight: 787 gr / x 27.76 • Meets ROHS, FCC, and CE EMI requirements

---
