HDMI KVM SWITCH FOR DUAL HDMI 4K 60Hz
The CSV-1382 is a high performance HDMI™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any HDMI™ source to any HDMI™ supported display. This HDMI™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.

Support resolution up to 4Kx2K@60Hz
Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Support KVM function
Support a HDMI™ display and a set of Keyboard and Mouse to control two PCs with HDMI™ ports
Support 6Gbps per channel (18Gbps all channels) bandwidth
Support 12bit per channel (36bit all channels) deep color
Support HDCP 2.2/1.4
Support 3D
Support HDR
Support infrared remote control function
Support for switching LED indications

TECHNICAL SPECIFICATIONS



Supported resolution
• Max Resolution: 3840*2160@60Hz , 4096*2160@60Hz


Input
• PC 1: HDMI™ + USB + Mic + Stereo Port • PC 2: HDMI™ + USB + Mic + Stereo Port • 3.5mm Mic Input port • DC 5V - Power Supply Unit


Output
• 1x HDMI™ Female • 1x MIC • 1x Stereo Jack • 1x USB Mouse connection • 1x USB Keyboard connection • 3.5mm Stereo port


OS Support
• Windows/Linux/Apple Mac OS


In the box

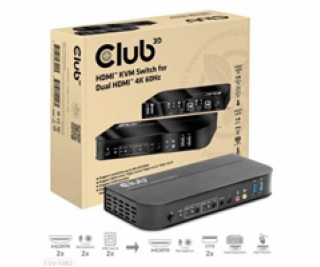

• CSV-1382 HDMI™ KVM Switch x 1 • External Power Supply 5V 3A x 1 • IR Remote Control x1 • IR Extender x1 • USB Type B Male to USB A Male cable x2 • Quick Installation Guide


Other info
• Box size: 23 x 21 x 6.5 cm / 9.05 x 7.08 x 2.56 • Device size: 17.8 x7.5 x 2.6 cm/ 7.0 x 2.95 x 1.02 • Box Weight: 147 gr / 5.185 oz • Device Weight: 365 gr / 12.875 oz • USB Type B Male cable Weight: 54 gr / 1.91 oz - 2x 108 gr / 3.81 oz • IR Remote Control incl. battery Weight: 16 gr / 0.57 oz • IR Extender Weight: 33 gr / 1.16 oz • Power Adapter Weight: 107 gr / 3.77 oz • LDPE Bag Weight: 6 gr / 0.21 oz • Total Weight: 783 gr / 27.62 oz • Meets ROHS, FCC, and CE EMI requirements

---
