Popis produktu

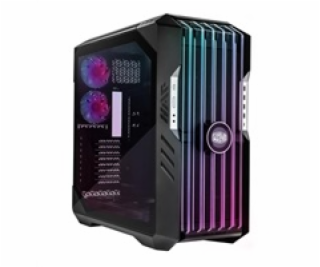

HAF 700 EVO

Unparalleled Hardware & Cooling Capabilities
Mammoth Water Cooling Support
Exclusive Tool-Less Technology
IRIS: Personal LCD Assistant
ARGB Gen2 ready with MasterPlus+ integration

TECHNICAL SPECIFICATIONS



Model Number
H700E-IGNN-S00


Exterior Color
Titanium Grey


Materials - Exterior
Mesh, Steel, Plastic


Materials - Left Side Panel
Tempered Glass, Steel


Dimensions (L x W x H)
556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)


Motherboard Support
Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB


Expansion Slots
8


5.25 Drive Bays
N/A


2.5 / 3.5 Drive Bays (combo)
12


2.5 Drive Bays
12


I/O Panel - USB Ports
1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)


I/O Panel - Audio In / Out
1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack


I/O Panel - Other
1x LED Controller A1 (ARGB Gen 2), 1x ARGB/PWM Hub


Pre-installed Fans - Front
2x SickleFlow PWM Performance Ed. 200mm


Pre-installed Fans - Rear
2x SickleFlow PWM ARGB 120mm


Pre-installed Fans - Bottom
1x SickleFlow PWM ARGB 120mm


Fan Support - Top
2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)


Fan Support - Front
2x 200mm, 3x 120/140mm


Fan Support - Rear
2x 120mm


Fan Support - Bottom
3x 120/140mm


Fan Support - Side
4x 120mm / 3x 140mm


Radiator Support - Top
Up to 2x 360mm / 1x 420mm


Radiator Support - Front
Up to 420/360mm


Radiator Support - Rear
Up to 240mm


Radiator Support - Bottom
Up to 420/360mm


Radiator Support - Side
Up to 480/420mm


Clearance - CPU Cooler
166mm / 6.53 inch


Clearance - PSU
200mm / 7.87 inch


Clearance - GFX
490mm / 19.29 inch


Cable Routing - Behind Motherboard Tray
90-101mm


Additional Included Accessories
Universal Graphics Card Holder Kit V2


Dust Filters
Front, Bottom, Side


Power Supply Support
Bottom Mount, ATX

---
