Popis produktu

CASE + ZDROJ 650W BRONZE 80+ MPE-6501-ACABW-BCP

Palette & Brush

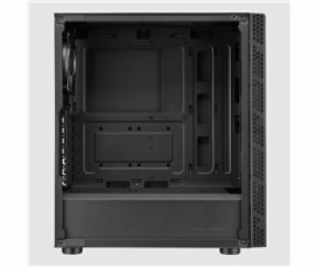

Each element of the MasterBox MB600L was created from an elegant palette. With a brushed finish, subtle hue, and the minimalistic Cooler Master hexagon, this ATX PC case decorates the gaming setup and workspace while also being able to house the latest hardware.
High style embellishes high upgradeability with front, top, and rear ventilation, offering additional mounting options for upgrading cooling components in the future. If an optional RGB or ARGB fan is installed behind the front panel, the Cooler Master hexagon will also be illuminated on the front panel. A total of 6 fans can be mounted simultaneously, ensuring that even the most demanding builds can stay cool under heavy use.


Brushed Front Panel – A brushed finish spans the entire front panel for an elegant and minimalistic design.
Hexagon Gleam – If an optional, illuminated fan is installed, the Cooler Master hexagon logo will capture light from the fan and emit a glow on the front panel.
Mesh Intakes – Large, mesh intakes span each side of the front panel to provide additional airflow to system.
With/Without ODD Support – Depending on preference, an ODD version of the chassis is available. If an ODD is not preferred, cleaner appearance and more cooling options on the top and front panels are supported. The ODD version of the MB600L is slightly deeper in comparison to its non-ODD counterpart.
Versatile Cooling Options – Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
Room For Upgrades * - Support for up to a 400mm graphics card, a 161mm CPU cooler, and multiple fan/radiator locations provide room for upgrades to stay ahead of the game.
*clearances vary per model
Removable HDD Cage – The modular frame allows builders to remove the drive cage completely, providing a greater freedom in building and increased compatibility for long power supplies.






Product Name


MasterBox MB600L
V2 w/o ODD





Product Number


MB600L2-KNNN-S00 (Steel)





Exterior Color


Black




Materials


Exterior


Steel, Plastic




Left Side Panel


Steel




Dimensions
(L x W x H)


Incl. Protrusions


405.5x204x455.3mm





Excl. Protrusions


400x204x455.3mm





Volume (Liters Excl. Protrusions)


37.15L





Motherboard Support


Mini-ITX, Micro-ATX, ATX




Expansion Slots


7




Drive Bays


5.25“ ODD


0





2.5” / 3.5” HDD


2





2.5” SSD


2





I/O Panel


USB Ports


2 x USB 3.2 Gen 1 Type A




Audio In / Out


1 x 3.5mm Headset Jack (Audio + Mic)




Pre-installed Fan(s)


Top


N/A




Front


N/A




Rear


1 x 120mm




Fan Support


Top


2 x 120mm, 2 x 140mm





Front


3 x 120mm, 2 x 140mm





Rear


1 x 120mm




Radiator Support


Top


120/240 (RAM height limit 32mm; install RAM first, then install radiator)





Front


120 / 140 / 240 / 280mm





Rear


120mm




Clearances


CPU Cooler


161mm




Power Supply


160mm





Graphics Card


350mm (w/o front fans & radiator)





Cable Routing


Behind MB Tray


18.5mm




Dust Filters


Front, Top, Bottom




Power Supply Support


Bottom Mount, ATX




Warranty


2 Years

---
