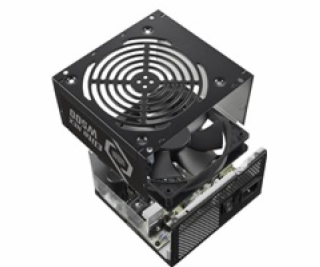

ELITE NEX 230V
The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, Active PFC, and 3 years warranty deliver a PSU that provides function you can count on. This power supply unit has been engineered for reliability. The Elite NEX is a complete solution, offering performance and stability at an affordable price.

Active PFC + Dual Forward Topology Design : Constructed with protective measures normally found in high-end power supplies to increase safety and current stability.
High Temperature Resistance : Capable of operating at 40°C under full load allowing a longer lifespan in warmer environments.
Peak Power Tolerance : Can reliably push an additional 100W at peak power load for up to 20 seconds.
80 PLUS White EU 230V Efficiency : Maintains a higher efficiency of 85% at typical load.
Durable, Reliable, and Safe : Will perform consistently in whatever environment whether it s high altitudes or ultra humid settings.
3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.


TECHNICAL SPECIFICATIONS



ATX Version
ATX12V Rev. 2.41


PFC
Active PFC


Input Voltage
200 - 240V


Input Current
4A


Input Frequency
50 - 60Hz


Dimension (L x W x H)
140 x 150 x 86mm


Fan Size
120mm


Fan Bearing
Sleeve Fan


Efficiency
>= 85% @ Typical Load


ERP 2014 LOT 3
Yes


Operating Temperature
0 - 40°C


Power Good Signal
100 - 500 ms


Hold Up Time
>= 10ms at 100% Load


MTBF
>100,000 hours


Protections
OVP / OPP / SCP / UVP / OTP / Inrush Protection


Regulatory
TUV,cTUVus,CE,FCC,CCC,EAC,UKCA


ATX 24-pin Connnectors
x1 = 1x (550mm)


EPS 4+4 pin Connnectors
x1 = 1x (550mm)


SATA Connectors
x2 = 1x (400+150mm); x3 = 1x (400+150+150mm)


Peripheral 4-pin Connectors
x3 = 1x (400+150+150mm)


PCI-E 6+2 pin Connectors
x2 = 1x (500+120mm)

---
