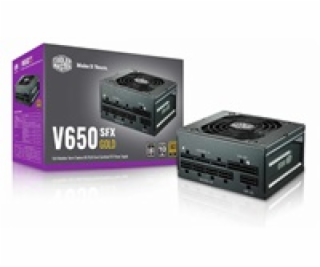

V650 SFX GOLD
FULL-MODULAR 80 PLUS GOLD SFX POWER SUPPLY

80 Plus Gold Efficiency
SFX Form Factor
SFX-to-ATX Bracket
80 Plus Gold Certified
Full-modular Cabling
10 Year Warranty


TECHNICAL SPECIFICATIONS



ATX Version
SFX 12V Ver.3.42


PFC
Active PFC


Input Voltage
90-264 V


Input Current
8-4A


Input frequency
47-63 Hz


Dimensions (L x W x H)
100 x 125 x 63.5 mm


Fan Size
92 mm


Fan Bearing
FDB


Efficiency
90% Typical Load


80 Plus Rating
80 PLUS Gold


ERP 2014 Lot 3
Yes


Operating Temperature
0-50°C


Power Good Signal
100-500 ms


Hold Up Time
16ms


MTBF
>100,000 Hours


Protections
OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection


Regulatory
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB


ATX 24-pin Connectors
1


EPS 4+4 pin Connectors
1


EPS 8-pin Connector
1


SATA Connectors
8


Peripheral 4-pin Connectors
4


PCI-E 6+2 pin Connectors
4


Series
V Gold Series, V SFX Gold Series


80 PLUS
Gold


Modular
Full Modular


Wattage
500 to 750 W

---
