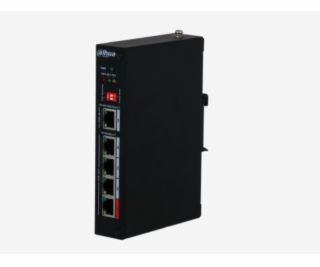

Dahua PFT1500 5-Port PoE Extender with 4-Port PoE Out and 1-Port PoE In
Dahua PFT1500 5-Port PoE Extender with 4-Port PoE Out and 1-Port PoE In
190,16 €
158,47 € bez DPH
Dostupnost: Áno, centrál. sklad 🛈
Part no.: PFT1500
Kód produktu: 110699407
Výrobce: DAHUA
Popis produktu
All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards.
250 m long-distance PoE transmission, which can be enabled by the DIP switch.
PoE Watchdog for real-time detection of terminal device status.
Fanless.
Full-metal.
Lightning Protection: common mode: 4 kV, differential mode: 2 kV.
Desktop mount and DIN-rail mount.
Hardware
PoE
Yes
Ethernet Port
4
Ethernet Port Speed
10/100 Mbps
Ethernet Port Uplink Speed
10/100/1000 Mbps
Description of Function Slots
Port1-4: 4*RJ45 10/100 Mbps
Port5: 1*RJ45 10/100/1000 Mbps
Operating Temperature
–30 °C to +65 °C
Operating Humidity
5%–95% (RH)
Storage Temperature
–40 °C to +70 °C
Storage Humidity
5%–95% (RH)
Power Consumption
Idling: 5 W
Full load: 90 W
Performance
Layer
Layer 2
Management Type
No
MTBF
66.37
Switching Capacity
2.8 Gbps
Packet Forwarding Rate
2.08 Mpps
Packet Buffer Size
1 Mbit
Jumbo Frame
9K Byte
MAC Table Size
4K
Communication Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3az
PoE
PoE Protocol
IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power
Port 2-4 ? 30 W, port 1 ? 90 W, Full load ? 90 W
PoE Pin Assignment
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE Transmission
Yes
Port
IEEE 802.3x Flow Control
Yes
General
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection
Common mode: 4 kV
Differential mode: 2 kV
Net Weight
0.47 kg (1.03 lb)
Gross Weight
0.65 kg (1.43 lb)
Product Dimensions
150 mm × 100 mm × 30 mm
(5.9 × 3.9 × 1.2 )
Packaging Dimensions
265 mm × 238 mm × 76 mm
(10.43 × 9.37 × 2.99 )
Casing
Metal
Installation
Desk Mount
Guide Rail Mount
Certifications
CE; FCC
Popis produktu
4× 100 Mbps PoE Ethernet ports, 1 × 1000 Mbps PoE Ethernet port.All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards.
250 m long-distance PoE transmission, which can be enabled by the DIP switch.
PoE Watchdog for real-time detection of terminal device status.
Fanless.
Full-metal.
Lightning Protection: common mode: 4 kV, differential mode: 2 kV.
Desktop mount and DIN-rail mount.
Hardware
PoE
Yes
Ethernet Port
4
Ethernet Port Speed
10/100 Mbps
Ethernet Port Uplink Speed
10/100/1000 Mbps
Description of Function Slots
Port1-4: 4*RJ45 10/100 Mbps
Port5: 1*RJ45 10/100/1000 Mbps
Operating Temperature
–30 °C to +65 °C
Operating Humidity
5%–95% (RH)
Storage Temperature
–40 °C to +70 °C
Storage Humidity
5%–95% (RH)
Power Consumption
Idling: 5 W
Full load: 90 W
Performance
Layer
Layer 2
Management Type
No
MTBF
66.37
Switching Capacity
2.8 Gbps
Packet Forwarding Rate
2.08 Mpps
Packet Buffer Size
1 Mbit
Jumbo Frame
9K Byte
MAC Table Size
4K
Communication Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3az
PoE
PoE Protocol
IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power
Port 2-4 ? 30 W, port 1 ? 90 W, Full load ? 90 W
PoE Pin Assignment
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE Transmission
Yes
Port
IEEE 802.3x Flow Control
Yes
General
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection
Common mode: 4 kV
Differential mode: 2 kV
Net Weight
0.47 kg (1.03 lb)
Gross Weight
0.65 kg (1.43 lb)
Product Dimensions
150 mm × 100 mm × 30 mm
(5.9 × 3.9 × 1.2 )
Packaging Dimensions
265 mm × 238 mm × 76 mm
(10.43 × 9.37 × 2.99 )
Casing
Metal
Installation
Desk Mount
Guide Rail Mount
Certifications
CE; FCC
