CAT 7 S-FTP installation cable, 305 m, box, AWG 26/1, 600 MHz, Dca, LSZH-3, color RAL9003

Description
CAT 7 S-FTP installation cable, 305 m, box, AWG 26/1, 600 MHz, Dca, LSZH-3, color RAL9003
Future-oriented standards and high-end quality for your network.
10GBit Ethernet
600 MHz transmission frequency
PoE Power over Ethernet support
CPR class Dca
Maxflex - maximum flexibility for your network cabling

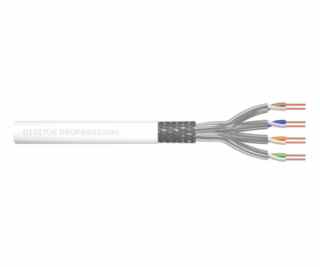

The Digitus® Professional Cat.7 S/FTP installation cable is characterized by the following cable construction 4x2x AWG 26/1 and reaches a transmission frequency up to 600 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for laying in residental as well as SoHo areas.

Technical Details
Physical properties:
Basic conductor: Solid AWG 26/1, bare annealed copper, diameter 0.57 mm nominal
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper wire braid
Outer jacket: Halogen-free (FRNC-C/LSZH-3)
Outer jacket diameter: 0.7 mm nominal
Color: White (RAL 9003)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter: 7.3 mm nominal
Flame retardancy: IEC 60332-3-24
Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
Fire load: 620 Mj/km
Weight: 35 kg/km
Electrical properties:
Mean impedance: 100±5Ohm at 1MHz - 600MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 72 Ohm/km max. (2% max. resistance unbalance)
DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 80 dB
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 15 nS/100 m max.
Separating class: “d” acc. to EN 50174-2
NVP: 79%
Permanent Link length maximum 60 m

---
