CAT 6 F-UTP installation cable, 250 MHz Eca (EN 50575), AWG 23/1, 100 m paper box, simplex, color purple

Description
CAT 6 F-UTP installation cable, 250 MHz Eca (EN 50575), AWG 23/1, 100 m paper box, simplex, color purple

Future-oriented standards and high-end quality for your network.

1GBit Ethernet
250 MHz transmission frequency
PoE Power over Ethernet support
CPR class Eca

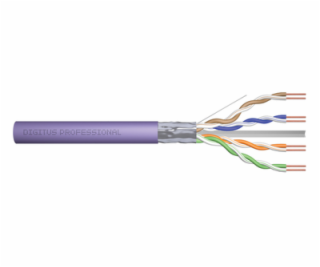

The Digitus® Professional Cat.6 F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 250 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1.

Technical Details
Physical properties:
Basic conductor: Solid AWG 23/1, bare annealed copper, diameter 0.57 mm nominal
Insulation: HD-PE
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: Aluminum foil, providing 100% coverage, drain wire
Outer jacket: Halogen-free (FRNC-B/LSZH-1)
Outer jacket diameter: 0.50 mm nominal
Color: Purple (RAL 4005)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +60 °C
Operating temperature range: -20 °C up to +75 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter: 7.0 mm nominal
Flame retardancy: IEC 60332-1
Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
Fire load: 295 Mj/km
Electrical properties:
Mean impedance: 100±5Ohm at 1MHz - 600MHz
Capacitance: 48 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 40 dB
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
NVP: 69%
Nominal cross section conductor: 0.2552
Core insulation: PE (polyethylene)
Core identification: Colour
Flame retardant: In accordance with EN 60332-1-2
Stranding element: Pairs
Colour outer sheath: Other
Category: 6
Conductor material: Cu, bare
Screen over stranding element: None
Screen over stranding: Foil
Material outer sheath: Polyolefin
Conductor category: Class 1 = solid
Permitted cable outer temperature, in movement: -20 … 60
Permitted cable outer temperature, fixed: -20 … 75
AWG-size: 23
Number of cores: 1
Outer diameter approx.: 7
Low smoke (acc. EN 61034-2): yes
NVP value: 69
Halogen free (acc. EN 60754-1/2): yes

---
