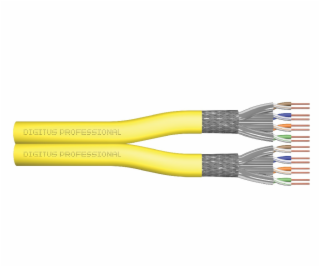

CAT 7A S-FTP installation cable, 1500 MHz Dca (EN 50575), AWG 22/1, 500 m drum, duplex, color yellow

Description
CAT 7A S-FTP installation cable, 1500 MHz Dca (EN 50575), AWG 22/1, 500 m drum, duplex, color yellow

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
1500 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class Dca
The Digitus® Professional Cat.7A S/FTP installation cable is characterized by the following cable construction 4x2x AWG22/1 and reaches a transmission frequency up to 1500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.

Technical Details
Physical properties:
Basic conductor: Solid AWG 22/1, bare annealed copper, diameter 0.62 mm nominal
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper wire braid
Outer jacket: Halogen-free (FRNC-C/LSZH-3)
Outer jacked diameter: 0.6 mm nominal
Color: Yellow (RAL 1016)
Length: 500 m
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Temperature installation range: 0°C to +50°C
Overall diameter: 8.0 mm nominal
Flame retardancy: IEC 60332-3-24
Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
Fire load: 700 Mj/km
Weight: 70 kg/km
Electrical properties:
Mean impedance: 100±5 Ohm @ 1-600 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 80 dB
Propagation delay: 10 nS/100 m max.
Signal propagation delay: 450 nS/100 m max.
Separating class: “d” acc. to EN 50174-2
NVP: 79%
Nominal cross section conductor: 0.2827
Core insulation: Foam-Skin-PE
Core identification: Colour
Flame retardant: In accordance with EN 60332-3-24
Stranding element: Pairs
Colour outer sheath: Yellow
Category: 7A (IEC)
Conductor material: Cu, bare
Screen over stranding element: Foil
Screen over stranding: Braiding
Material outer sheath: Polyolefin
Conductor category: Class 1 = solid
Permitted cable outer temperature, in movement: -20 … 75
Permitted cable outer temperature, fixed: 0 … 50
AWG-size: 22
Number of cores: 1
Outer diameter approx.: 7.3
Low smoke (acc. EN 61034-2): yes
NVP value: 79
Halogen free (acc. EN 60754-1/2): yes

---
