Popis produktu

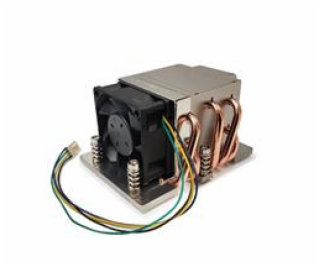

Recommend for AMD® Genoa® Processor Family, Socket SP5, Active Cooler for 2U Server & Up, 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack, Support CPU Power up to 320 Watts Heat Dissipation.

Additional Information






CPU Support


AMD




CPU Socket


Genoa®, Socket SP5




Solution


2U Server and Up




Dimensions


118 x 92.4 x 65 mm




Weight


510 g




Material


5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack




Fan Dimension


60 x 60 x 25 mm




Speed


At Duty Cycle 0~20%: 2300± 200 RPM

At Duty Cycle 50%: 5400± 10% RPM

At Duty Cycle 100%: 11000±10% RPM




Rated Voltage


12V




Bearing


Double Ball




Power


At Duty Cycle 0~20%: 0.84 W

At Duty Cycle 50%: 2.76 W

At Duty Cycle 100%: 18.0 W




Air Flow


At Duty Cycle 0~20%: 11.91 CFM

At Duty Cycle 50%: 28.38 CFM

At Duty Cycle 100%: 58.31 CFM




Noise Level


At Duty Cycle 0~20%: 25.8 dBA

At Duty Cycle 50%: 44.4 dBA

At Duty Cycle 100%: 59.8 dBA




Air Pressure


At Duty Cycle 0~20%: 1.48 mm-H2O

At Duty Cycle 50%: 7.54 mm-H2O

At Duty Cycle 100%: 28.8 mm-H2O




Lead Wire Pin Out


Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)




Thermal Grease


Shin-Etsu 7762 Pre-printed





*All product specifications and product imagesare subject to change without notice

---
