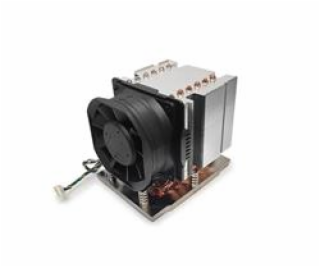

Recommend for AMD® Genoa® Processor Family, Socket SP5, Aluminum Stacked Fins with Heat Pipes and Copper Heat Spreader Embedded in Aluminum Heatsink Base, Support up to 320 Watts CPU Power Heat Dissipation.



Additional Information






CPU Support


AMD®




CPU Socket


Genoa®, Socket SP5




Solution


3U Server and Up




Dimensions


118.0 x 92.4 x 105.0 mm




Weight


798 g




Material


Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Aluminum Heatsink Base




Fan Dimension


80 x 80 x 38 mm




Speed


At Duty Cycle 20%: 2400 ± 200 RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8000 ± 10% RPM




Rated Voltage


12V




Bearing


Double Ball




Power


At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W




Air Flow


At Duty Cycle 0~20%: 32.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM




Noise Level


At Duty Cycle 20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBA




Air Pressure


At Duty Cycle 20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2O




Lead Wire Pin Out


Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)




Thermal Grease


Shin-Etsu 7762 Pre-printed





*All product specifications and product images are subject to change without notice.

---
