Popis produktu

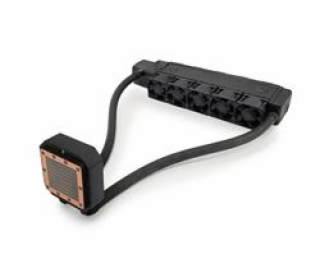

All-in-one Liquid Cooler for 1U Server and up, Recommend for Intel Socket LGA115x, LGA2011/2066 Square ILM Mounting , AMD Socket AM2, AM3, AM4, AM5, FM1 and FM2, Five 40X40 mm PWM fans with Maximum 12000rpm Fan Speed, Fully Support CPU Overclocking 250 Watts Heat Dissipation.







CPU Support


Intel & AMD




CPU Socket


LGA 115X, LGA1700, LGA2011/2066 Square ILM

AM2/AM3/AM4/AM5/FM1/FM2




Solution


1U Server




Fan Dimension


40 x 40 x 28 mm




Speed


At Duty Cycle 0~20%: 3300±10% RPM
At Duty Cycle 50%: 5700±10% RPM
At Duty Cycle 100%: 12000±10% RPM




Bearing


2 Ball Bearing




Rated Voltage


12V




Power


At Duty Cycle 0~ 20%: 0.72 W
At Duty Cycle 50%: 1.56 W
At Duty Cycle 100%: 8.40 W




Noise Level


At Duty Cycle 0~ 20%: 25.93 dBA
At Duty Cycle 50%: 37.80 dBA
At Duty Cycle 100%: 53.96 dBA




Air Flow


At Duty Cycle 0~ 20%: 5.920 CFM
At Duty Cycle 50%: 10.225 CFM
At Duty Cycle 100%: 21.526 CFM




Air Pressure


At Duty Cycle 0~ 20%: 1.733 mm-H2O
At Duty Cycle 50%: 5.170 mm-H2O
At Duty Cycle 100%: 22.912 mm-H2O




Lead Wire Pin Out


Pin1- (-)
Pin2- (+)
Pin3- (Tachometer/Signal output)
Pin4- (PWM)

---
