Popis produktu

Způsob provozu: Aku baterie
Napětí baterie (V): 3,7
Typ baterie / aku: Lithium-Ionen
Včetně baterií: ano
Displej: LCD
Osvětlení pozadí: ano
Rozsah měření: 10 - 2000 m
Paměť měřených hodnot: 5
vypínací automatika: ano
USB: ano
Bluetooth: ne
Typ: Kabeltester
Materiál: Plast

Ermenrich Ping SM110 cable tester

The Ermenrich Ping SM110 is a multifunctional testing device for cable tracking, length measurement and testing of different cable types. It can also be used to check the condition of telephone lines and determine polarity. Optionally, a PoE test can be performed and the device has a flash port function to identify the port on the switch or router. The VFL function helps you detect if a cable is damaged or locate a cable in a cable bundle by flashing a red light on the connector.

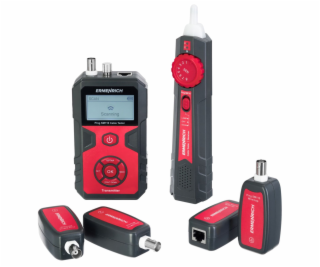

The Ermenrich Ping SM110 cable tester consists of three main units: a transmitter with display and control buttons, a receiver with speaker and adjustable sensitivity and 4 remote units. Adapters and patch cables are also included. All accessories are delivered in a convenient carry bag that can safely store all devices.

Transmitter and receiver are equipped with batteries, adapters and charging cables.

Features:


Cable assignment and tracking of coaxial and network cables
Checking the condition and polarity of telephone lines
Measurement of cable lengths up to 2,000 meters
PoE test, port flash and VFL functions
Powered by rechargeable battery (transmitter and receiver)


Technical data:


Transmitter connections: microUSB, RJ45 (main), RJ45 (scan), BNC, PoE, Flash, VFL
Supported cable types: telephone cable, coaxial cable, STP/UTP (CAT5, CAT6), network cable
Maximum length of cable tested: 2000 m
Cable tracking
Detection of voltage polarity
Measuring range: 10 - 2000 m
Visual Troubleshooting (VFL)
Signal frequency: 130 kHz
Data transfer: + (5 memory locations)
Display: LCD
Display resolution: 128 ? 64 pixels
Display backlight
Power source: 1400 mAh, 3.7 V lithium polymer battery
Display at low battery level
Automatic shutdown: 15  / 60 min / 30 min
Temperature range:  10...+ 60 degrees

---
