Popis produktu

Typ baterie / aku: Lithium-Ionen
Potřebný počet baterií: 1
Včetně baterií: ano
Typ: Termální kamera
Barva: černá / fialová
Hmotnost (g): 860
vypínací automatika: ano

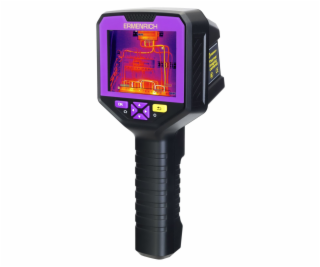

Ermenrich Seek TV90 Thermal Imaging Device

The Ermenrich Seek TV70 is useful for inspecting electrical equipment, finding heat leaks in facades and foundations of buildings or monitoring the installation of heating systems. The temperature measurement range of the thermal imaging device ranges from 20 to +400°C.

The thermal imaging device is equipped with a 120x90 px thermal imaging module and a 1-MP camera for visible light. The following image display modes are available: visible light, infrared, edge fusion, dual-light fusion and picture in picture function. The image on the LCD color screen is displayed in one of 8 color palettes.

The measurement process can be recorded in photos or video and the data is stored on an integrated 8 GB memory card.

The case has an ergonomic handle and six control buttons, powered by a 2600 mAh lithium battery. One charge is enough for 4 hours of continuous operation, the automatic shut-off function and a battery level indicator help you save energy. For charging, a USB Type-C cable is used.

Features:


Thermal imaging device with a 120 x 90 pixel sensor and 1 MP camera
8 color palettes, different display modes and picture-in-picture function
240 x 320 pixel LCD screen
Capture photos and videos to 8 GB internal storage
2600 mAh lithium battery, USB cable for charging
Continuous operation of up to 4 hours, automatic shutdown


Technical data:


Type of thermal imaging device: manual
Resolution of the microbolometer matrix: 120 x 90 pixels
Spectral range: 8 - 14 µm
Speed: 25 Hz
Temperature measuring range: -20 - 400° C
Temperature error, %: resolution: 0.1°C, precision: <100°C:  2°C;  100°C:  2%
Temperature sensitivity (NETD), mK<70
Color palettes: Hot Black, Hot White, Hot Red, Hot Green, Red Iron, Rainbow, Lava, High Contrast
Field of view (horizontal) x (vertical): 38 x 50°, 7.39 mrad (immediate)
Fusion of optical and thermal images+
Display: LCD
Display diagonal: 2.8 inch
Display resolution: 240 x 320 pixels
Operating mode: infrared mode, infrared edge detection mode, dual-light viewing mode, visible light mode
Power source: 2600 mAh lithium battery; Charging via USB Type-C cable (included), USB-C charging adapter available as an option
Battery life: 4 h
Maximum load (impact), gSturz from a height of up to 1 meter
Integrated recorder
Memory (built-in): 8 GB
Video format: mp4
Bildformat: JPG
Interface connector: USB type C
Additional parameters: Low battery display, picture-in-picture mode, camera resolution: 1 MP, adjustable emissivity from 0.1 to 0.99, response time: 12 ms, automatic shut-off

---
