Popis produktu

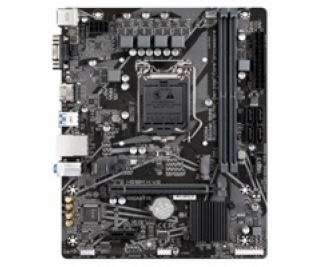

GIGABYTE H510M H V2 Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 Supports 11th/10th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 8-Channel HD Audio with High Quality Audio Capacitors NVMe PCIe Gen3 x4 2280 M.2 Connector GbE LAN with Bandwidth Management Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design CPU - 11th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors - 10th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors / Intel Core™ i3 processors/ Intel Pentium processors / Intel Celeron processors - L3 cache varies with CPU (Please refer to CPU Support List for more information.) Chipset Intel H470 Express Chipset Memory 11th Generation Intel Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core™ i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer Memory Support List for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * The D-Sub port is only available with the 10th Generation processors. (Graphics specifications may vary depending on CPU support.) Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices USB Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed contro * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

---

Našli ste v tomto popise chybu? Prosím kontakujte nás na email: info@mader.sk
Rada výrobcov si vyhradzuje právo na zmenu niektorých parametrov, či vlastností bez predchadzajúceho upozornenia.
