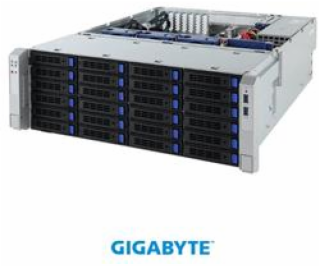

4U 36-Bay Single Processors Storage Server (AMD)   | Application:  Storage   &  Networking



Single AMD EPYC™ 7002 and 7001 series processor family
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x SFP+ 10Gb/s LAN ports (Broadcom ®  BCM 57810S)
1 x dedicated management port
36 x 3.5" SATA/SAS hot-swap HDD/ SSD bays
2 x 2.5" SATA hot-swap SSD for booting device
SAS expander with 12Gb/s transfer speed
Ultra-Fast M.2 with PCIe Gen3 x4 interface
Up to 4 x PCIe Gen3 x16 slots and 3 x PCIe Gen3 x8 slots
Aspeed ®  AST2500 remote management controller
Dual 1200W 80 PLUS Platinum redundant power supply
Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products



Dimensions (WxHxD, mm)

4U
482.6 x 177 x 625



Motherboard

MZ31-AR0



CPU

AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 32-core, 64 threads
TDP up to 155W

Compatible with AMD EPYC™ 7001 series processor family



Socket

Socket SP3



Chipset

System on Chip



Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC



LAN

2 x SFP+ 10Gb/s LAN ports (Broadcom ®  BCM 57810S)
1 x 10/100/1000 management LAN



Video

Integrated in Aspeed ®  AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM



Audio

-



Storage

Front side: 24 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side: 12 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side booting device bay: 2 x 2.5" hot-swappable SSD bays*

NOTE:
* For rear side 2.5" bays support Solid State Drives only due to thermal consideration

2 x Broadcom SAS3x36R expanders
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
2 x SAS/SATA drives in rear side
SAS card is required to enable the drive bays

Suggested 12Gb/s SAS cards:
CRA4648
CSA4648



SATA

-



SAS

Depends on SAS add-on Card



RAID

Depends on SAS add-on Card



Peripheral Drives

-



Expansion Slots

Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards



Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer



Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x System status LED
2 x LAN activity LEDs



Rear I/O

2 x USB 3.0
1 x VGA
2 x SFP+
2 x RJ45
1 x MLAN
1 x ID button with LED
2 x LAN activity LEDs



Backplane I/O

Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port



TPM

1 x TPM header with LPC interface
Optional TPM2.0 kit:  CTM000



Power Supply

2 x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A



System Management

Aspeed ®  AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface


Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings





OS Compatibility

For AMD EPYC™ 7002 series processor family

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later

Citrix Hypervisor 8.1.0 or later

For AMD EPYC™ 7001 series processor family

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later



Weight

Net Weight: 29.5kg
Gross Weight: 53 kg



System Fans

7 x 80x80x38mm (9000rpm)



Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)



Packaging Dimensions

843 x 610 x 290 mm



Packaging Content

1 x S451-Z30
1 x CPU heatsinks
1 x Rail kit
