Popis produktu

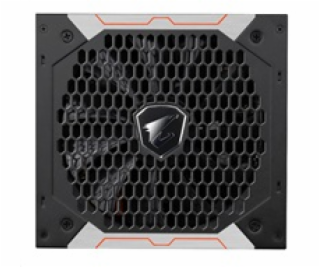

AORUS P750W 80+ GOLD Modular

Fully Modular Design
High quality 100% Japanese Capacitors
135mm 2 ball bearing smart fan with fan stop function
80 PLUS Gold certified: above 90% efficiency at 50% load
Single +12V rail
OCP/OTP/OVP/OPP/UVP/SCP protection
10 years warranty (Adjusted according to different regions)

TECHNICAL SPECIFICATIONS



Model
GP-AP750GM


Type
Intel Form Factor ATX 12V v2.31


PFC
Active PFC (>0.9 typical)


Input Voltage
100-240 Vac (full range)


Input Current
10A


Input Frequency
47-63 Hz


Output Capacity
750W


Dimension
150 x 160 x 86mm


Fan Type
135mm Double ball bearing fan


Efficiency
90% at typical load


MTBF
>100,000 hours


Protection
OVP/OPP/SCP/UVP/OCP/OTP


Cable Type
Flat, All black


Connectors
ATX/MB 20+4 Pin x 1 : 650mm CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1 SATA x6 + 4 Pin Peripheral x2 : 550mm+100mm+100mm+100mm*1 450mm+100mm+100mm+100mm *1 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 4 Pin Floppy x 1 : 100mm

---
