Popis produktu

Typ: Metalldrehbank
Zdroj napájení: Síť
Barva: šedá / červená
Hmotnost (kg): 126

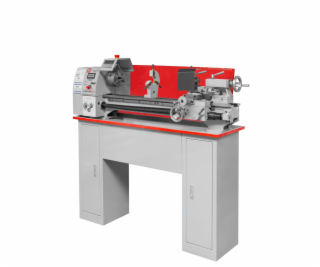

Holzmann ED750FD 230V metal lathe

The HOLZMANN ED750FD_230V enables the machining of workpieces up to 750 mm in length and a maximum diameter of 250 mm and, thanks to the powerful motor, also allows larger ablations in one pass. The spindle speed can be controlled by means of a potentiometer and thus enables a comfortable and accurate machining of the workpiece. With the ED750FD_230V, threads of different pitches (metric and inch) can also be cut. Supplied with extensive accessories, it is a reliable helper in every metalworking workshop.

Features:


Solid and robust cast design including base
Variable speed adjustable via potentiometer
Speed display via LCD display
Resistant, induction-hardened machine bed
Base cabinet with two boxes
Maximum turning diameter 250 mm, bed width 135 mm
Spindle bore 25 mm, spindle holder MK3, tailstock MK2


Technical data:


Power: 750 W
Voltage: 230 V / 50 HZ
Dimensions: 1355 x 560 x 1065 mm
Bed width: 135 mm
Spindle bore: 25 mm
Spindle cone: MK4/MT4
Tailstock cone: MK2/MT2
Rotary spindle speed 1 / 2: 50-1250 / 100-2500 U/min
Thread Metric: 0.2 - 3.5 mm
Center distance: 750 mm
Maximum swing diameter bed: 250 mm
Top height: 125 mm
Maximum swing diameter cross slide: 130 mm
Longitudinal feed: 0.07 - 0.4 mm
Travel longitudinal slide: 640 mm
Travel of cross slide: 115 mm
Travel distance upper slide: 70 mm
Spindle travel: 60 mm
Net weight: 126 kg
Colour: grey / red


Scope of delivery:


Substructure
3-jaw chuck 125 mm
2x grain tips
Interchangeable wheels
Internal and external jaws
4-way steel holder
Lead screw cover
Lining protection with viewing window
4-jaw chuck 125 mm
face plate 220 mm
Fixed bezel
Rotating bezel

---
