Popis produktu

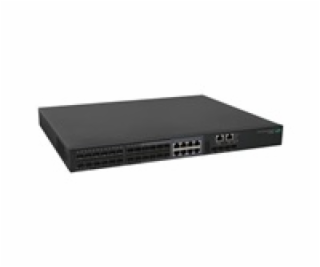

HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140 JL826AR RENEW







HPE FlexNetwork 5140 24G SFP 4SFP+ EI Switch (JL826A)




I/O ports and slots


16 SFP 100/1000 Mbps ports




8 SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports




4 SFP+ fixed 1000/10000 SFP+ ports




Additional ports and slots


1 RJ-45 serial console port




Power supplies


2 power supply slots
1 minimum power supply required (ordered separately)




Physical characteristics


Dimensions


17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height)




Weight


13.23 lb (6kg)




Memory and processor


512 MB SDRAM, 256 MB flash;




Mounting and enclosure


Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)




Performance


IPv6 Ready Certified




1000 Mb Latency


< 5 µs




10 Gbps Latency


< 3 µs




Throughput


95 Mpps




Routing/Switching capacity


128 Gbps




Routing table size


1024 entries




MAC address table size


16384 entries




Environment


Operating temperature


23°F to 113°F (-5°C to 45°C)




Operating relative humidity


10% to 90%, noncondensing




Non-operating/Storage temperature


-40°F to 158°F (-40°C to 70°C)




Non-operating/Storage relative humidity


5% to 95%, noncondensing




Acoustic


Low-speed fan: 41.4 dB, High-speed fan: 47.7 dB; ISO 7779









Electrical characteristics


Frequency


50/60 Hz




Maximum heat dissipation


102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130 BTU/hr min, 232 BTU/hr max.




Voltage


100 - 240 VAC
-48 to -60 VDC




Current


5 A




Maximum power rating


60 W




Idle power


30 W




Notes:


- Idle power is the actual power consumption of the device with no ports connected.
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
- Power Ratings for AC Power Supply indicated above.
- For DC input power, Idle Power is 38W and Max is 68W.
- DC Max input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply.




Safety


UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance




Emissions


FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993




Immunity


Generic


EN 55024




ESD


EN300 386




Management


IMC - Intelligent Management Center; SmartMC;command-line interface; Web browser; SNMP Manager






Ports



(16) SFP 100/1000 Mbps ports (8) SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports (4) SFP+ fixed 1000/10000 SFP+ ports




Throughput



up to 96 Mpps




Routing/switching capacity



128 Gbps




PoE capability



370W PoE+ Maximum, depending on model




Stacking capabilities



IRF 9 switches




Management features



IMC - Intelligent Management Center SmartMC Command-line interface Web browser SNMP manager




Input voltage



100 - 240 VAC, rated -48 to -60 VDC, rated (depending on power supply chosen)




Power consumption



57 W (maximum)




Product dimensions (imperial)



1.72 x 17.32 x 14.17 in




Weight



13.23 lbs




UNSPSC code



43222612

---
