Popis produktu

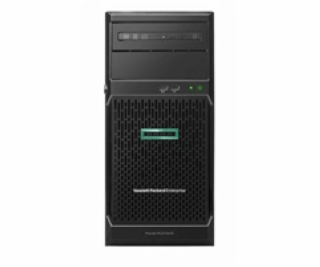

HPE ProLiant ML30 Gen10 Plus E-2314 (4C/2.8G) 16G 4LFF NHP VROC (4-6SATA) 350Wn NBD311
The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost.
Support Intel Xeon E-2300 processors up to 8 cores and Pentium processors. Intel Xeon E Processor is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. 3200 MT/s HPE DDR4 Standard Memory UDIMM offering 8GB, 16GB, and 32GB. Max 128GB memory capacity. Four expansion slots for flexible usage – two x16 and two x8 connectors, one powered by PCIe 4.0 x16. Support for one onboard M.2 NVMe/SATA SSD. Dedicated iLO port & serial port option kit On System Management Chipset HPE iLO 5 ASIC




SKU Number


P44718-421 (EMEA)







Model Name


HPE ProLiant ML30 Gen10 Plus E-2314 2.8GHz


4-core 1P 16GB-U 4LFF-NHP 350W PS Server




Processor


Intel Xeon E-2314 (4-Core, 2.8 GHz, 65W)







Number of Processors


One processor with a standard heatsink




Memory


16 GB UDIMM DDR4 3200 MT/s (1x 16 GB)







Network Controller


Embedded 1Gb 2-Port Ethernet Adapter Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter




Storage Controller


Embedded Intel VROC SATA software RAID 4 SATA ports support drive bays, 2 SATA ports support optional HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and additional 1 SATA via onboard M.2 slot. RAID 0/1/5/10. VROC SATA does not support RAID volume creation with different form factors of drives (e.g., SFF + M.2) Intel VROC SATA RAID supports Windows Server and Linux, but does not support VMware. Intel VROC SATA will operate in UEFI mode only. Intel VROC SATA is disabled by default. BIOS Default is SATA AHCI. Embedded Intel SATA VROC is disabled by default. Embedded Intel SATA VROC can be enabled in BIOS/Platform Configuration (RBSU) for SW RAID features. NHP models do not support internal Smart Array controllers.




Hard Drive


None included







Internal Storage


4 LFF HDD Bays (Non Hot Plug) 1 M.2 PCIe 3.0 x2/SATA slot




Optical Drive Bay


Optional Slimline ODD Bay Kit (P06309-B21) consumes 1 media bay ( Up to 1 optical drive bay )




Optical Drive


None included




PCI-Express Slots


1 PCIe 4.0 slots, 3 PCIe 3.0 slots




Power Supply


1 350W ATX Power Supply




Fans


1 non-hot plug non-redundant system fan




Management


HPE iLO Standard with Intelligent Provisioning (embedd.), HPE OneView Std (requires download)
HPE iLO Advanced, HPE iLO Adv Prem Security Edition, HPE OneView Advanced (require licenses)




Security


Embedded TPM




Form Factor


Tower (4U) 4 LFF non-hot plug chassis with 2 half-height (5.25 ) media bays for optional internal slim-line DVD bay kit, RDX, or LTO options




Warranty


3-year parts, 1-year labor, 1-year onsite support with next business day response.








V GA Port


1 standard (rear)




Serial Port


1 optional (rear)




Network Port (RJ-45)


2 x 1 Gb ports as standard (rear, 1 shared for HPE iLO)




Dedicated iLO Management Port (RJ-45)


1 optional (rear)




USB 3.0 Port


6 (1 front, 4 rear, 1 internal)




USB 2.0 Port


1 (1 front)




MicroSD Slot


Optional via HPE 32GB microSD RAID1 USB Boot Device
Notes: MicroSD cards are not hot-pluggable, server must be powered down before removal.




Operating Systems and Virtualization Software Support

Microsoft Windows Server 2019 : Essentials, Standard, Datacenter, Hyper-V
Microsoft Windows Server 2022 : Essentials, Standard, Datacenter
Red Hat Enterprise Linux (RHEL) : 8.4 (64 bit, includes KVM)
SUSE Linux Enterprise Server (SLES) : 12 SP5, 15 SP3 (64 bit, includes KVM & Xen)
VMware ESXi : 7.0 U3

---
