Popis produktu

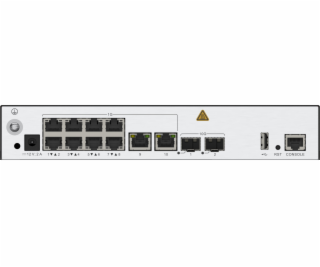

The AC650-128AP is a small-capacity box wireless access controller (WAC) for small office home office (SOHO) enterprises. It can manage up to 128 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for wired and wireless users. Also, the AC650-128AP features high scalability and offers users considerable flexibility in configuring the number of managed APs. With these strengths, this WAC can be used to construct small and medium campus networks, enterprise office networks, wireless metropolitan area networks (MANs), and hotspot coverage networks


- Manages up to 128 APs, meeting requirements of SOHO campuses.
- Provides 2 x 10GE optical interfaces and 10 x GE electrical interfaces, supporting up to 10 Gbps forwarding performance

Integrated fixed device
Y
First supported version
V200R022C10
Installation Type
Rack,Desk,Wall
Dimensions without packaging (H x W x D)
Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.) Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)
Weight without packaging
1.9kg
CPU
4Core, 1.2GHz
Memory
DDR4: 2 GB
Storage
Nand FLASH 1GB
Console port
RJ45
Maximum power consumption
23.58
Maximum heat dissipation
80.45
Power supply mode
DC adapter
Service port surge protection
6 kV in common mode
Types of fans
None
Maximum number of physical ports on the entire device
2 x 10GE (SFP+) + 10 x GE (RJ45)
Ground
Ground
Long-term operating temperature
0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity
5% RH to 95% RH, non-condensing
Long-term operating altitude
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure
53kPa - 106kPa ETSI 300 019-2-3
USB
1 x USB 2.0 (host type A) port
MTBF
50
MTTR
2

---
