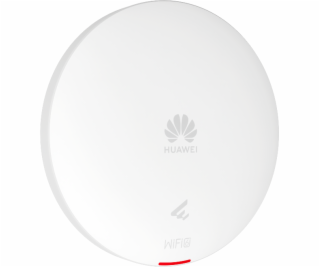

Huawei eKitEngine AP362 is a Wi-Fi 6 (802.11ax) wall plate access point (AP). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, achieving a device rate of up to 2.975 Gbps. This AP features high bandwidth and high concurrency with compact size, facilitating flexible deployment and saving customers investment. These strengths make the AP362 ideal for indoor coverage scenarios of small and medium-sized enterprise offices, hospitals, and higher education.
. Dual-radio mode: 2.4 GHz (2x2 MIMO) + 5 GHz (2x2 MIMO), achieving rates of up to 575 Mbps and 2.4 Gbps, respectively, and 2.975 Gbps for the device.
. 1 x GE electrical port.
. Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.
. Supports the Fat, Fit, leader, and cloud working modes.

MIMO spatial streams
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard
2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface
Built-in smart antennas
Antenna gain
2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Maximum transmit power
2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
3G/LTE filte (ACC)
Not supported
Integrated fixed device
Y
First supported version
V200R021C11
Installation Type
Wall,Ceiling,T-Rail
Dimensions without packaging (H x W x D)
Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D)
52 mm x 231 mm x 200 mm (2.05 in. x 9.09 in. x 7.87 in.)
Weight without packaging
0.46 kg (1.01 lb)
Weight with packaging
0.80 kg (1.76 lb)
CPU
2-core, 1.0 GHz
Memory
DDR3L 512 MB
Storage
NAND Flash 256 MB
Console port
None
Maximum power consumption
11.2
Power supply mode
DC adapter,PoE
Rated input voltage
12 V
Input voltage range
DC: 12 V ± 10% PoE: 802.3af
Service port surge protection
PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C
Maximum number of physical ports on the entire device
GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature
–10°C to +50°C (14°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity
5% RH to 95% RH
Long-term operating altitude
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure
53kPa - 106kPa ETSI 300 019-2-3
Ground
floating ground
BLE
Not supported
Radio number
2
Operating frequency band
2.4GHz,5GHz
MTBF
205.07
MTTR
0.5
Frequency stability
+/-20
802.3bt power supply description
No function is limited.
802.3at power supply description
No function is limited.
802.3af power supply description
No function is limited.
DC power supply description
No function is limited.

---
