Popis produktu

Počet Gigabit-Portů: 24
Uplink-Port: 2
Počet SFP Portů: 2
PoE (Power over Ethernet): ano
Možnost montáže na stojan: ano
IEEE 802.3 10-BASE-T, Ethernet: ano
IEEE 802.3ab 1000-BASE-T, Gigabit Ethernet: ano
IEEE 802.3af Power Over Ethernet (PoE): ano
IEEE 802.3at Power over Ethernet Plus (PoE+): ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
IEEE 802.3x Flow Control (Full-Duplex Flow Control): ano
IEEE 802.3z 1000-BASE-SX, Gigabit Ethernet: ano
Typ: Switch
Barva: černá
Šířka (mm): 440
Výška (mm): 45
Hloubka (mm): 220
Hmotnost (g): 2710

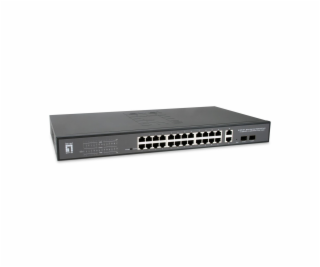

LevelOne GEP-2841, 28-Port Smart Gigabit PoE Switch

The LevelOne GEP-2841 Web Smart Gigabit PoE Switch offers 24x 10/100/1000Base-T PoE ports, 2x Gigabit uplink SFP ports and 2x Gigabit uplink RJ45 ports for a high-speed network. The highly visible status LEDs allow easy monitoring of port link activity.  In addition, the SFP slots support pluggable modules, so you can choose from a variety of transceivers. It offers powerful advanced PoE functionality and a total PoE budget of 375W, fully compliant with the IEEE802.3af/at/bt PoE standard with a maximum power budget of 90W (on ports 1 and 2). It supports up to 30W output power per additional PoE port, giving you flexibility in power distribution for a wide range of PoE PD devices.

Features:


24x Gigabit PoE ports, 2x Gigabit RJ45 uplink ports and 2x Gigabit SFP uplink slots
375 W PoE budget, up to 2x 90 W ports (ports 1 and 2) and up to 30 W per additional port up to 375 W total power
IEEE 802.3af/at/bt PoE compliant for easy deployment and installation
Supports port-based VLAN
Supports IEEE 802.1P Layer 2 priority queuing for optimal data flow
Data transmission: Gigabit Ethernet
Backplane: 56 Gbit/s
Standards:

IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE802.3af
IEEE802.3at
IEEE802.3bt


Mounting: 19 rack mount, table mount
Dimensions: 440 x 220 x 45 mm
Weight: 2.71 kg

---
