Popis produktu

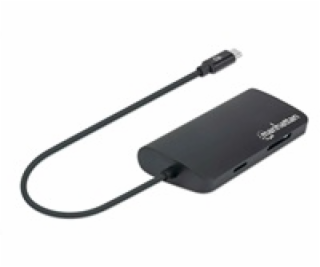

SuperSpeed USB-C Multiport Adapter
USB 3.2 Gen 1 Type-C Male to HDMI ( 4K@30Hz ) Female, Three SuperSpeed USB-A Ports, USB-C Power Delivery (PD 3.0) Port, Gigabit RJ45 Port and SD/MicroSD Card Reader; Aluminum, Black

Durable, portable and powerful USB-C hub that connects you to the network, your display, multiple USB devices and external memory
Supports up to 4K@30Hz resolution in Mirror or Extended mode
Up to 5 Gbps data transfer speeds on USB ports following USB 3.2 Gen 1 specification


TECHNICAL SPECIFICATIONS



Standards and Certifications
USB 3.2 Gen 1 HDMI 1.4 HDCP 1.4 CE FCC RoHS2 WEEE


Video Resolutions
- 640 x 480 - 800 x 600 - 1024 x 768 - 1920 x 1080 ( 1080p@60Hz ) - 1920 x 1200 - 3840 x 2160p at 30 Hz ( 4K@30Hz )


USB-A ports
5 Gbps


Ethernet port
10/100/1000 Mbps


Supported flash cards
SD / MicroSD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile; up to 128 GB - Transfer speed: up to 800 Mbps


USB-C PD Charging Port
100 W (20 V at 5 A)


Withstanding voltage
300 VDC


Insulation resistance
10 MOhm


Conductive resistance
5 Ohm


Connections Input
One USB-C 24-pin, male


Connections Output
One HDMI 19-pin, female One 10/100/1000 Mbps RJ45, female Three USB-A 4-pin, female One SD memory slot One MicroSD memory slot One USB-C 24-pin, Power Delivery, female


Dimensions
110 x 45 x 18 mm (4.33 x 1.77 x 0.71 in.)


Cable Length
30 cm (11.8 in.)


Weight
80 g (2.82 oz.)


Housing
Aluminium


Operation Temperature
0 - 45°C (32 - 113°F)


Storage Temperature
-10 - 70°C (14 - 158°F)


Humidity (noncondensing)
10 - 90%


System Requirements
DP Alt Mode supported devices Windows XP/Vista/7/8.1/10 Linux Mac OS 10.7.1 or above


Package Contents
SuperSpeed USB-C Multiport Adapter Quick Instruction Guide

---
