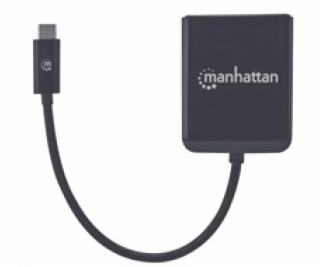

USB-C to Dual DisplayPort Adapter – MST Hub USB-C Male to Two DP Ports; Mirror, Extended and Video-Wall Modes Supported; 4K@30Hz ; Black

Supports 4K@30Hz (Ultra-High-Definition, UHD) resolution, full 3D video and Deep Color
Supports Mirror, Extended or Video-Wall modes
Mirror mode duplicates the computer screen onto the connected displays

The Manhattan USB-C to Dual DisplayPort Adapter – MST Hub establishes a fast, simple and convenient link between a newer USB type-C-equipped media source (e.g., computer, tablet, smartphone, etc.) and up to two existing DisplayPort (DP) displays. Using DP Alt Mode technology, the adapter perfectly translates an audio/video signal from a single USB-C source into DisplayPort format (up to 4k@30Hz , UHD) and streams it simultaneously to one or two connected displays. Ideal for trade shows, classrooms, video conferencing, presentations, office and retail applications, the Manhattan USB-C to Dual DisplayPort Adapter – MST Hub perfectly distributes a synchronous signal in either Mirrored or Extended modes to the connected displays. The included MST feature can create a video wall from the two displays, offering a more immersive experience whether in a gaming session, in a conference room or at the home office. Full compliance with DisplayPort, USB-C and HDCP standards ensures that the Manhattan USB-C to Dual DisplayPort Adapter – MST Hub can provide years of superior service and reliable performance. Setup is easy: simply connect the DP cables (not included) to the adapter and plug its USB-C connector into your device. That s all that s needed to complete this affordable, dual-UHD-display solution — no software/hardware configuration or complicated settings required.
Features:

Supports 4K@30Hz (Ultra-High-Definition, UHD) resolution, full 3D video and Deep Color
Supports Mirror, Extended or Video-Wall modes
Mirror mode duplicates the computer screen onto the connected displays
Extended mode expands the desktop workspace onto the connected displays
Video-wall mode uses two screens as one for a more immersive experience; requires a graphics card that supports Video-Wall function
Mac OS X supports Mirror mode on up to two displays and Extended mode only on one display
Plug and Play; requires no external power supply
Three-year warranty

Specifications and Certifications

DP 1.2 over USB-C
HDCP
CE
FCC
RoHS2
Connections
One USB-C male (input)
Two DisplayPort female (output)
Signal Input/Output
Input video signal: 0.5 – 1.0 V p-p
Input DDC signal: 5 V p-p (TTL)
Maximum single-link range: 5.4 Gbps, 3840x2160 at 30 Hz resolution
Output video: HDCP
Video Resolutions
480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
Physical
Cable Length: 195 mm (7.96 in.)
Dimensions: 60 x 49 x 12 mm (2.36 x 1.93 x 0.47 in.)
Weight: 49 g (1.8 oz.)
Housing: plastic
Operating Environment
Operation Temperature: 0 – 40°C (32 – 104°F)
Storage Temperature: -20 – 60°C (-4 – 140°F)
Humidity (noncondensing): 0 – 96%
System Requirements
Windows XP/Vista/7/8.1/10
Mac 10.12.4 or above
DP 1.2 graphics card
Package Contents
USB-C to Dual DisplayPort Adapter – MST Hub
Quick Instruction Guide

---
